AGM ASP-MICRO TM160Y

Name: AGM ASP-MICRO TM160Y
Brand: AGM
SKU: 3093251001AM16
Price: 503.0000 USD
Availability: InStock
Rating: 3 (1 reviews)

Thermal imaging

PART #3093251001AM16

1 reviews | Write a review

Description And features

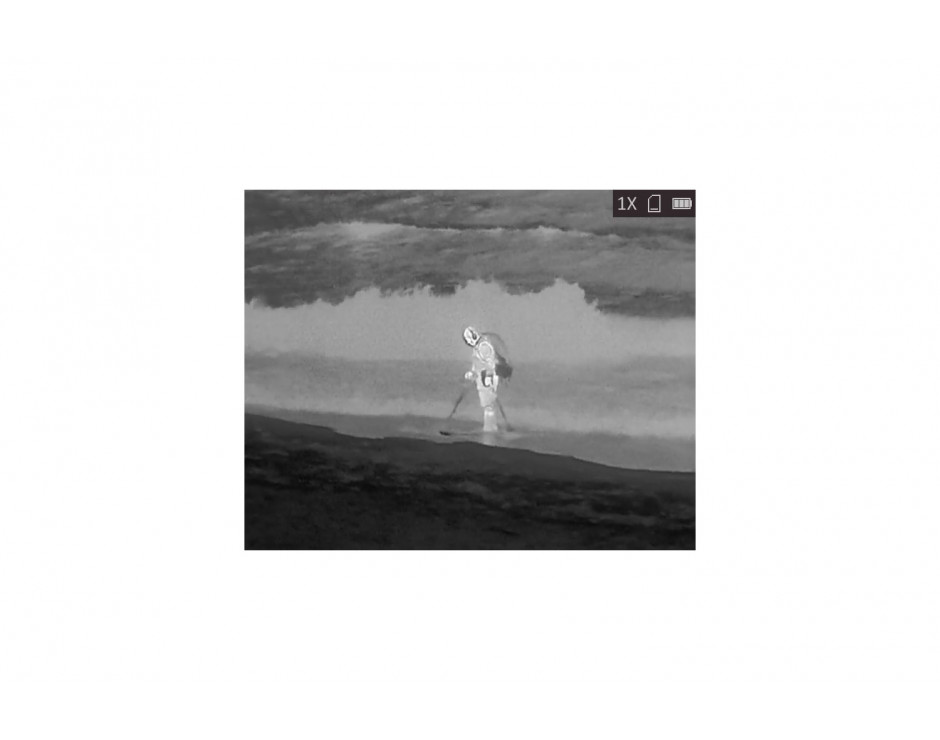

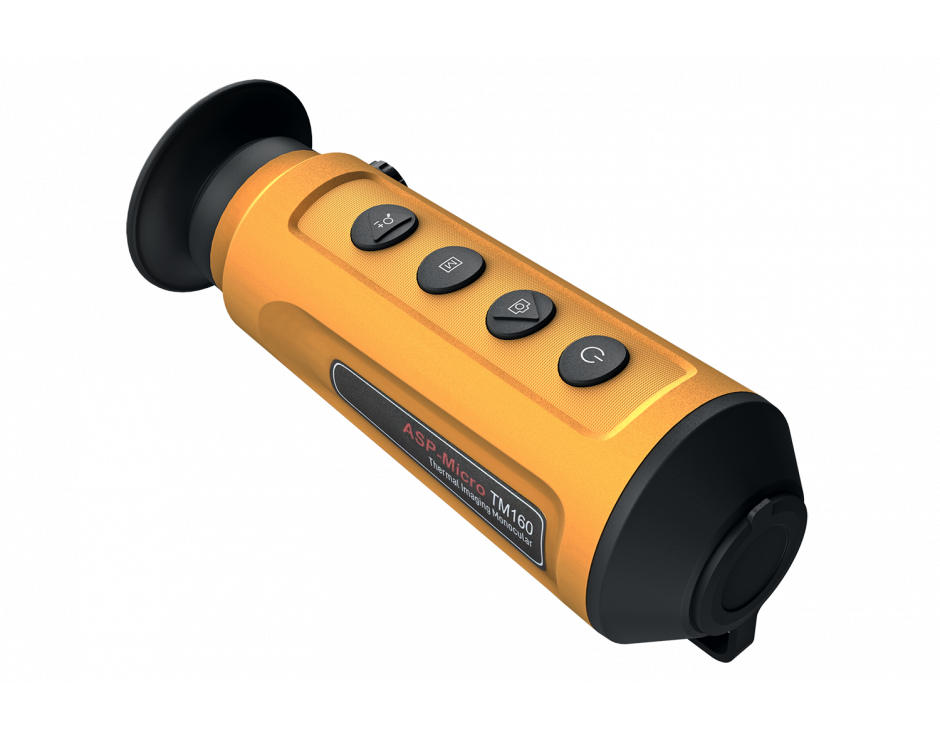

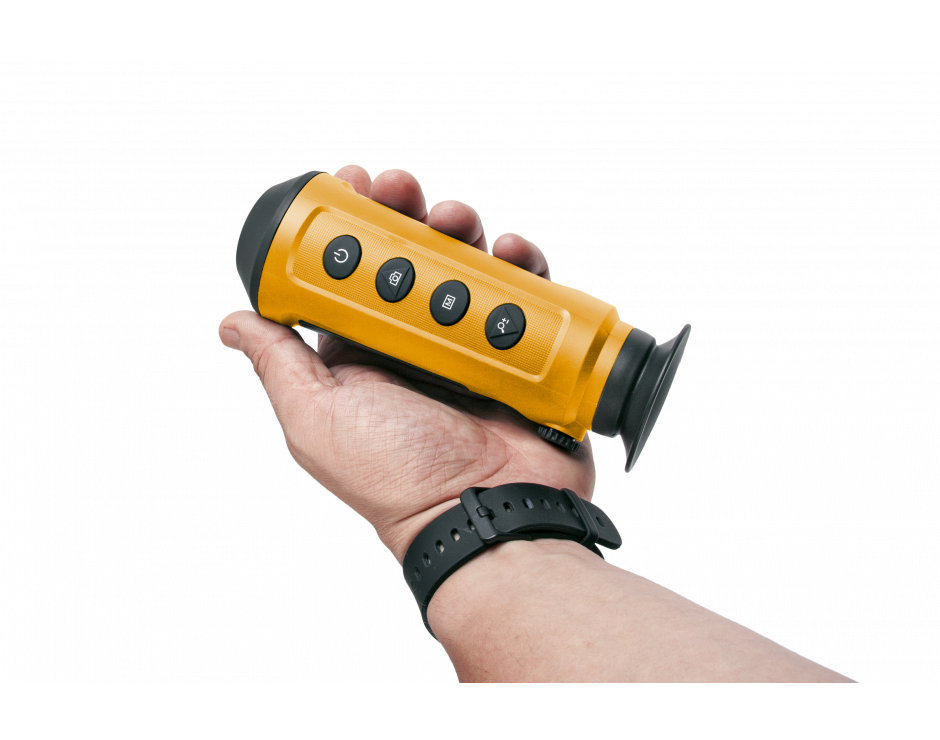

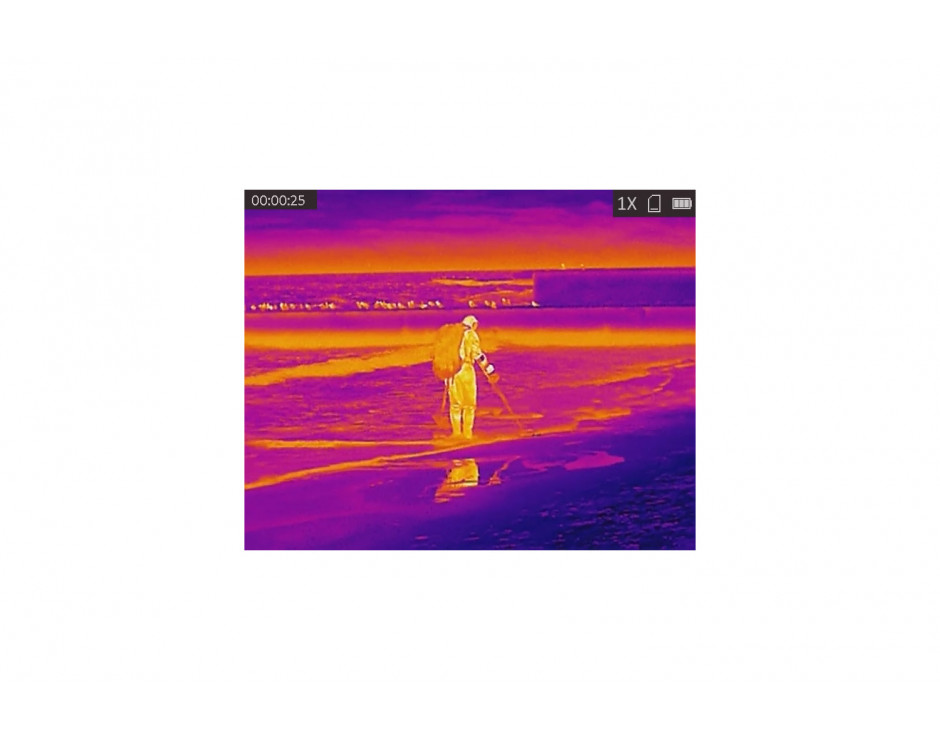

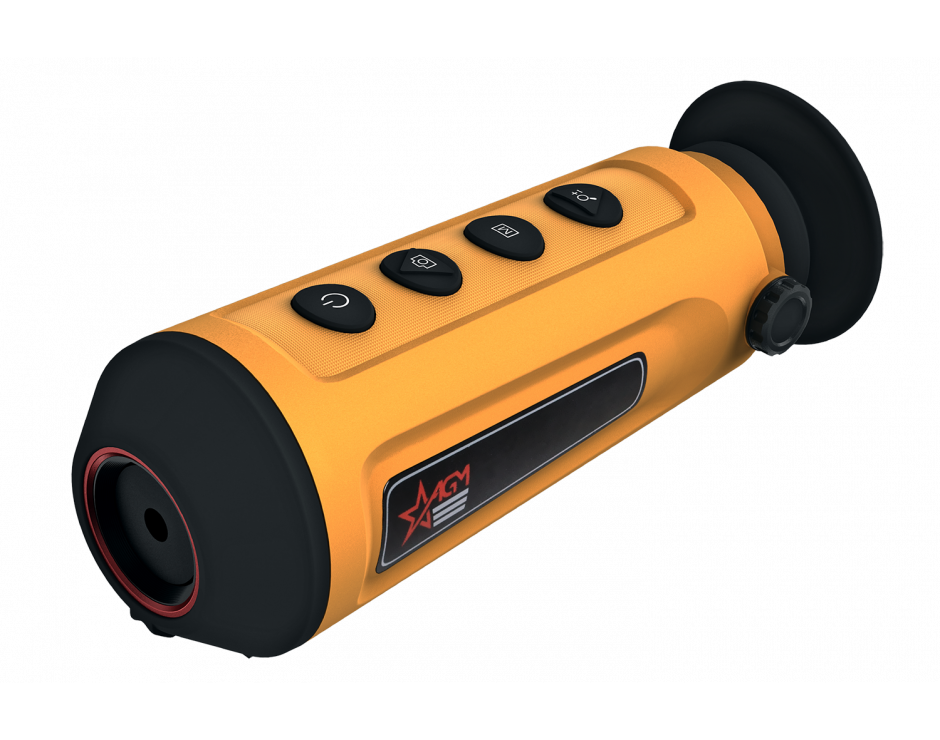

The Asp-Micro TM160Y handheld Industrial/Marine thermal monocular is equipped with a 160×120 infrared detector and a 720×540 LCOS display. It supports functions of observation, highest temperature target tracking, distance measurement, WiFi hotspot, and so on. The high-sensitivity built-in thermal detector provides you with clear view even in total darkness. Thanks to this, Asp-Micro allows you to observe boats, navigational objects, navigate at night, detect people overboard, as well as observe sea animals and birds.
The monocular is mainly applied to scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, antismuggling, surveillance of industrial facilities, boating, travel, fishing and hunting, etc.

FUNCTIONS
Distance Measurement:
The device realizes distance measurement function after marking the top and bottom of target, and input the target height.
Hot Spot Mark:
The device detects and marks the hot spot of highest temperature.
Mode Switch:
Device supports pallet switch and distance measurement.
Storage:
Built-in memory module supports video recording/snapshot capturing.
Digital Zoom:
Device supports 1×, 2×, and 4× digital zoom.
Wi-Fi Hotspot:
Device can capture snapshots, record videos, and set parameters via APP after being connected to your phone.

Warning: California's Proposition 65

160×120 resolution, high sensitivity detector
Adaptive AGC, DDE, 3D DNR
720×540 resolution LCOS display
Built-in rechargeable Lithium battery
Up to 10 hours continuous running (with Wi-Fi hotspot function off)
Wi-Fi hotspot
Type-C interface
Limited 3-year warranty

Characteristics

Detector type: Vanadium Oxide Uncooled Focal Plane Arrays

Refresh rate: Sensor 50 Hz

Resolution: 160x120

FOV: 15.61° × 11.74° (H × V)

Package Includes

USB Cable
Wrist Strap
Packing Box
Operators Manual
Lens Tissue

Downloads

Data Sheet

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$503.00

Compare

Quick Order

Add to cart

Specifications

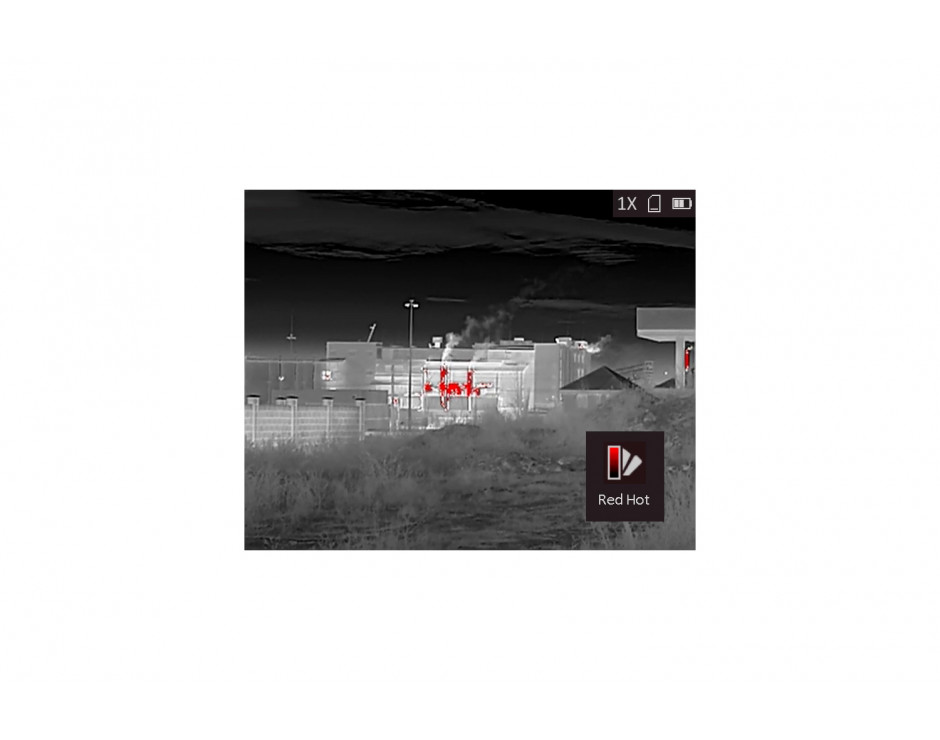

Palettes

Black Hot, White Hot, Red Hot, Fusion

Working Temperature

-20°C to 55°C (-4°F to 131°F)

Interface

USB Type-C

Multi Language menu

Yes

Drop Test Height

1.5 m (4.9 feet)

Detector type

Vanadium Oxide Uncooled Focal Plane Arrays

Response Waveband

8μm to 14μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

50 Hz

Aperture

F1.1

Resolution

160×120

NETD

Less than 35 mk (@25°C), F#=1.1

Lens (focal length)

6.2 mm

Power

5 VDC/2 A, 1.5 W

Field of view (H × X)

15.61° × 11.74° (H × V)

Digital zoom

2×, 4×

Monitor

720×540, 0.2 inch, LCOS

Storage

Built-in memory module (8 GB)

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

Built-in rechargeable Lithium battery

Wi-Fi

Yes

CVBS Output

Yes (via USB)

Battery Operating Time

Up to 10 hours continuous running (with Wi-Fi hotspot function off)

Battery Capacity Display

Yes

Weight

270 g (0.6 lb)

Overall Dimensions

161 × 61 × 57 mm (6.3 × 2.4 × 2.2 in)

Protection Level

IP67

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

Connect the thermal device to your PC with USB cable.
Turn on the thermal device.
Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
Turn off the device.
Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

ASP-MICRO TM160 THERMAL MONOCULAR FIRMWARE

Firmware Versions:
- V5.5.37_220112
  - Updated FPGA FW
  - Improve image quality.
  - Support "Auto Power Off."
  - Support "Time Sync."
  - Support "Burn-Prevention."
- V5.4.24_210927
  - Repacked firmware. All the features keep the same.
- V5.4.24_200808
  - Basic version.
