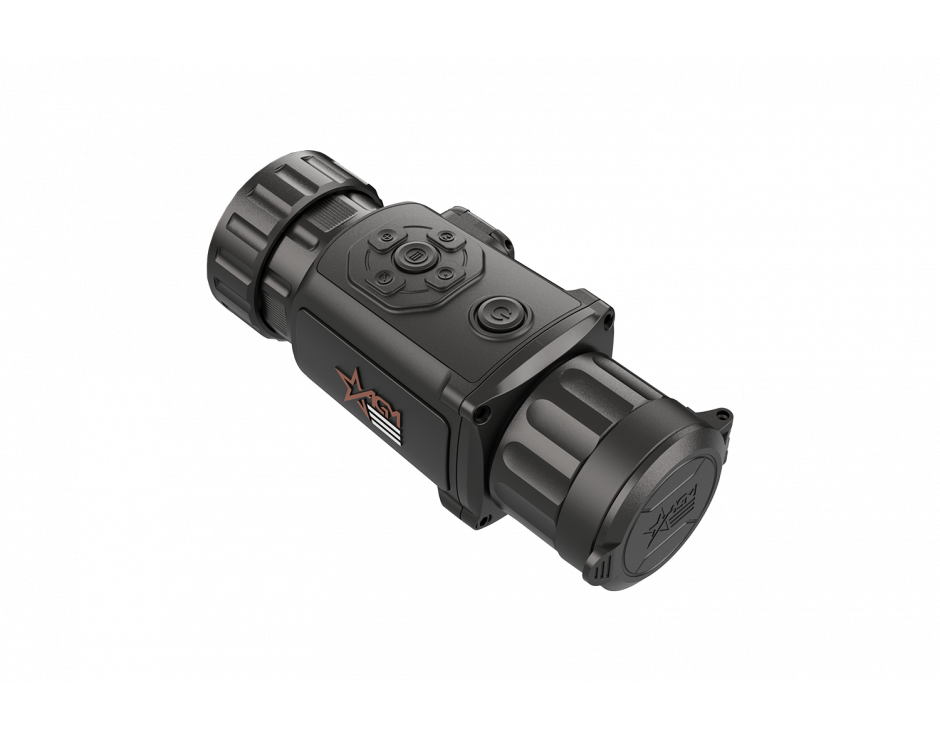

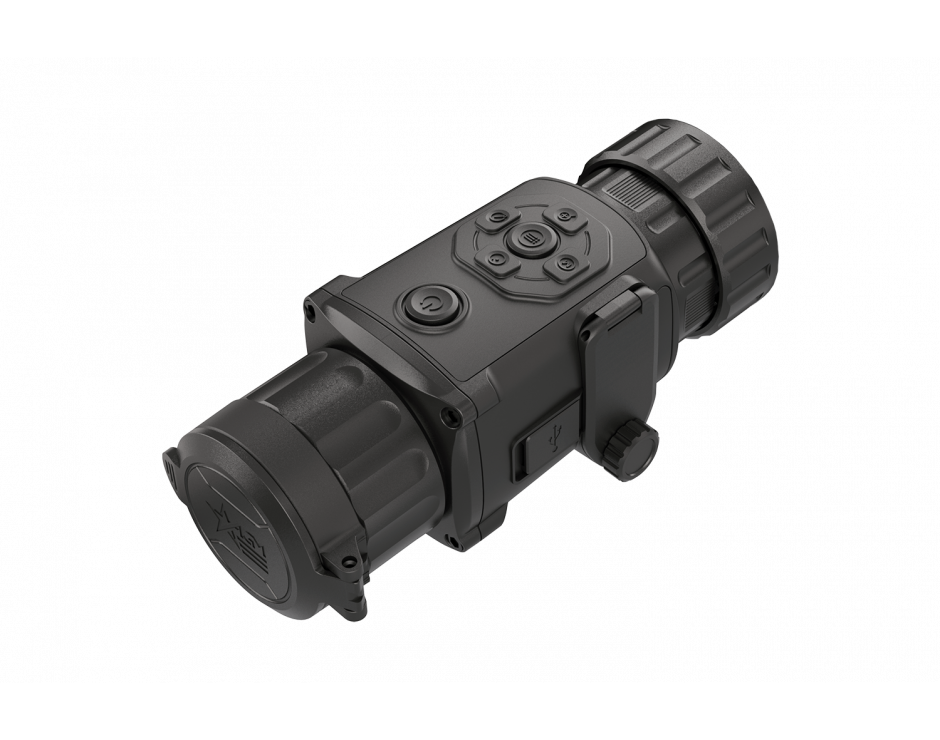

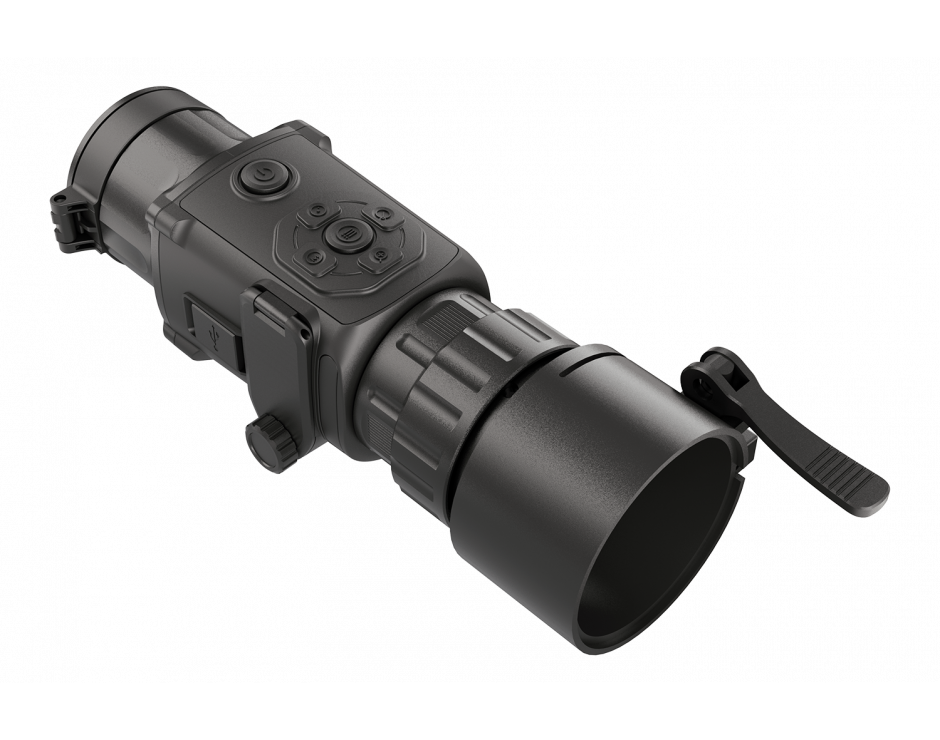

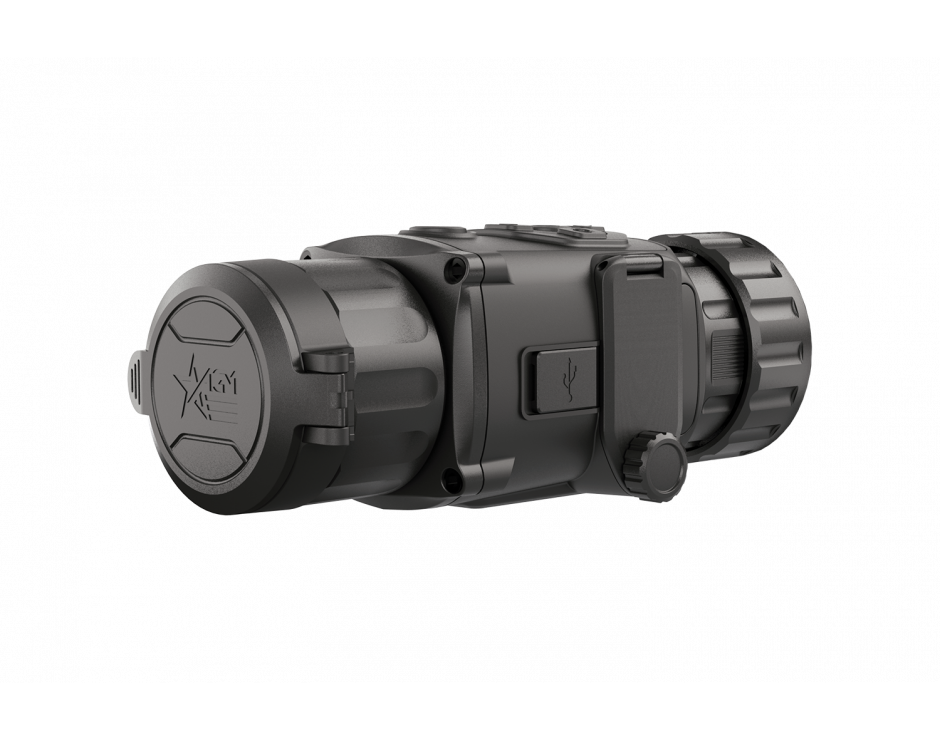

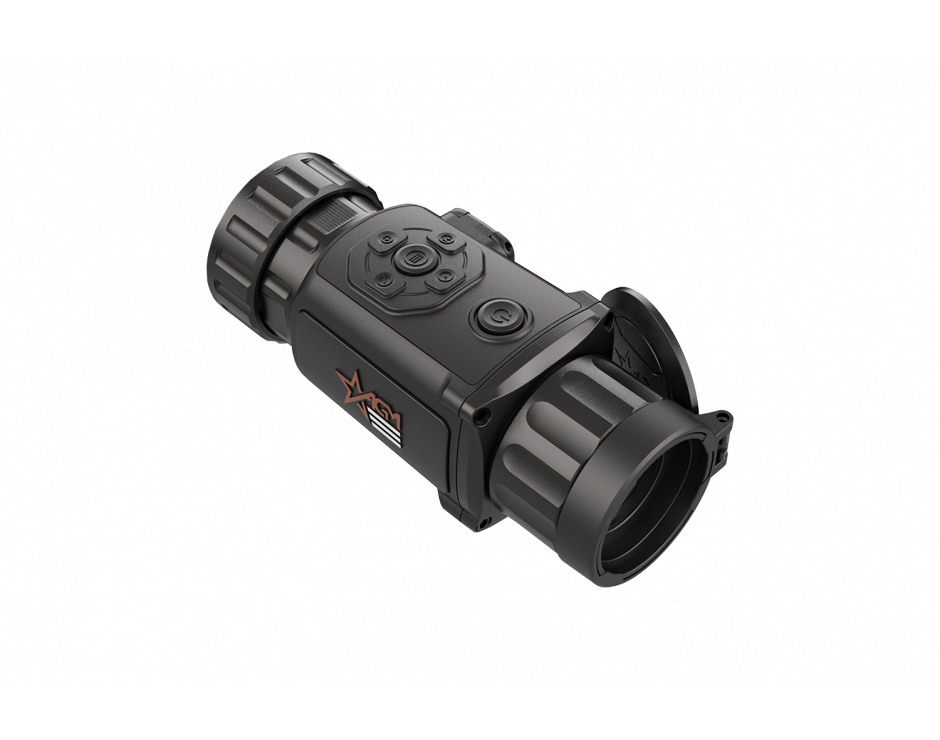

AGM RATTLER TC19-256

Thermal imaging

PART #3092856003TC91

0 reviews | Write a review

prod-img

Description And features

The AGM Rattler TC19-256 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. Rattler TC19-256 has high sensitivity 12μm thermal detector with 256×192 resolution and 1024x768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc.

The product is mainly applied to scenarios such as patrolling, hunting, etc. The Rattler TC19-256 can easily be attached in front of rifle scopes with magnification up to 6x for short range use.

Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

Warning: California's Proposition 65

  • Quick conversion of daytime optics into thermal imaging scope
  • 12μm high sensitivity detector
  • 256×192 thermal resolution
  • 1024x768 resolution 0.39-inch OLED display
  • 8x digital zoom
  • Video recording and snapshot, built-in EMMC (16 GB)
  • Supports distance measurement
  • Adjustable color palettes
  • Wi-Fi data transmission
  • Waterproof, shockproof
  • Up to 4.5 hours continuous working
  • External power supply capability
  • Limited 3-year warranty
Characteristics

Detector type: 12 μm VOx Uncooled Focal Plane Arrays

Refresh rate: 25 Hz

Resolution: 256 x 192

FOV: 9.2° x 6.9°

Downloads
Data Sheet
Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$1,464.00

Compare

Quick Order

Add to cart

Specifications

Palettes
Black Hot, White Hot, Red Hot, Fusion
Shock and vibration
750 g/ms
Exit Pupil Diameter
22 mm
Distance Measurement
Yes (Stadiometric Rangefinder)
Scene Mode
Jungle, Recognition
Observation Distance
950 m
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
Sensor 25 Hz / OLED 50 Hz
Resolution
256 x 192
Lens system
19 mm, F1.0
Optical magnification
1x
Power
5 VDC/2 A, USB Type-C interface Supports external power supply
Mounting
Optional Front Quick Release Adapters for different front lens diameter or Quick Release Mount for Picatinny/Weaver rail
Field of view (H × X)
9.2° x 6.9°
Monitor
1024x768, 0.39 inch, OLED
Storage
16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 4.5 hours continuous running (@25°C, WiFi off) Up to 4.0 hours continuous running (@25°C, WiFi on)
Battery Capacity Display
Yes
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Overall Dimensions
153 mm × 62 mm × 59 mm (6.0 × 2.4 × 2.3 in)
Protection Level
IP67
