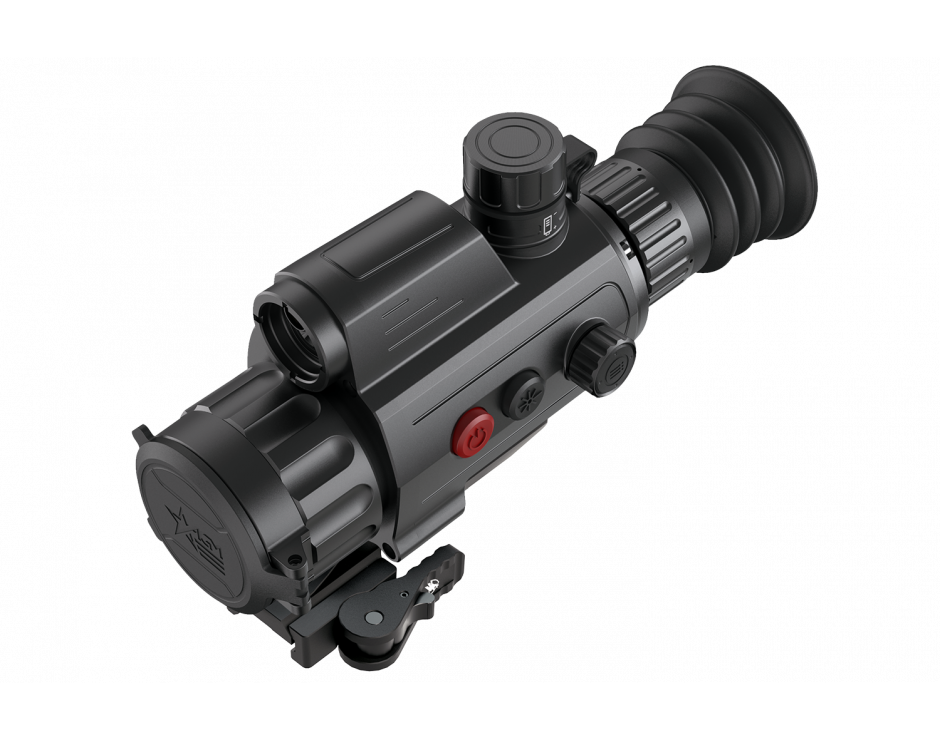

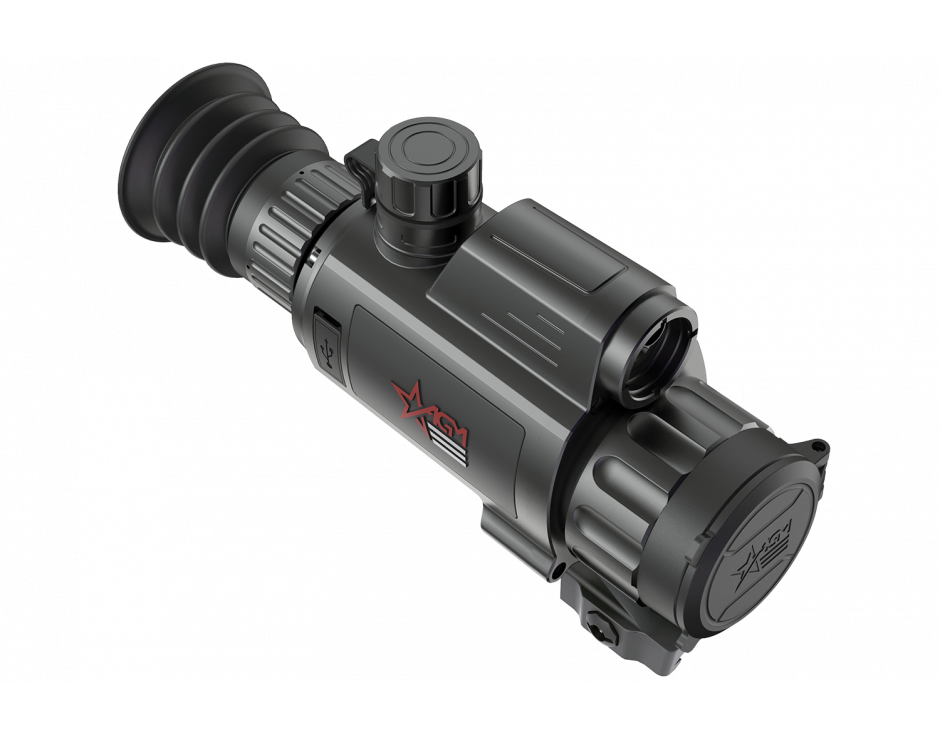

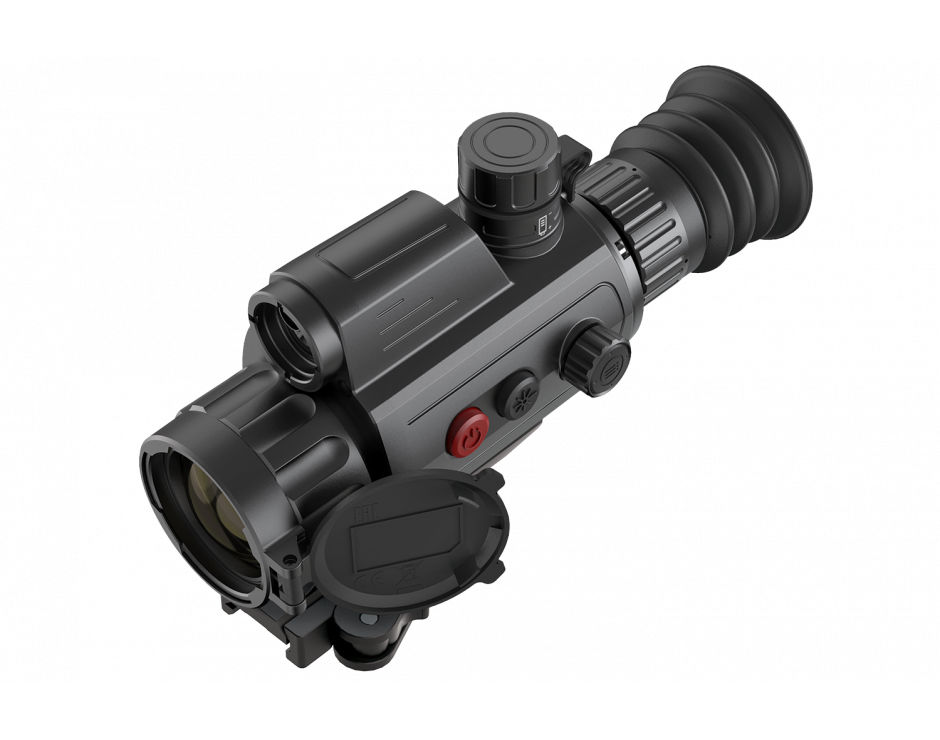

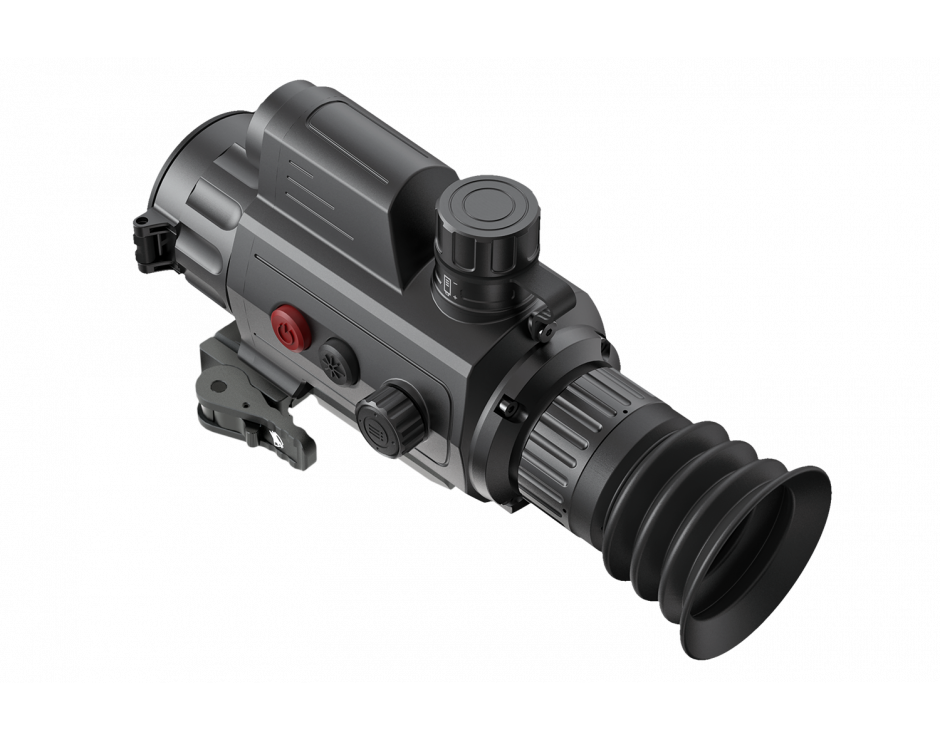

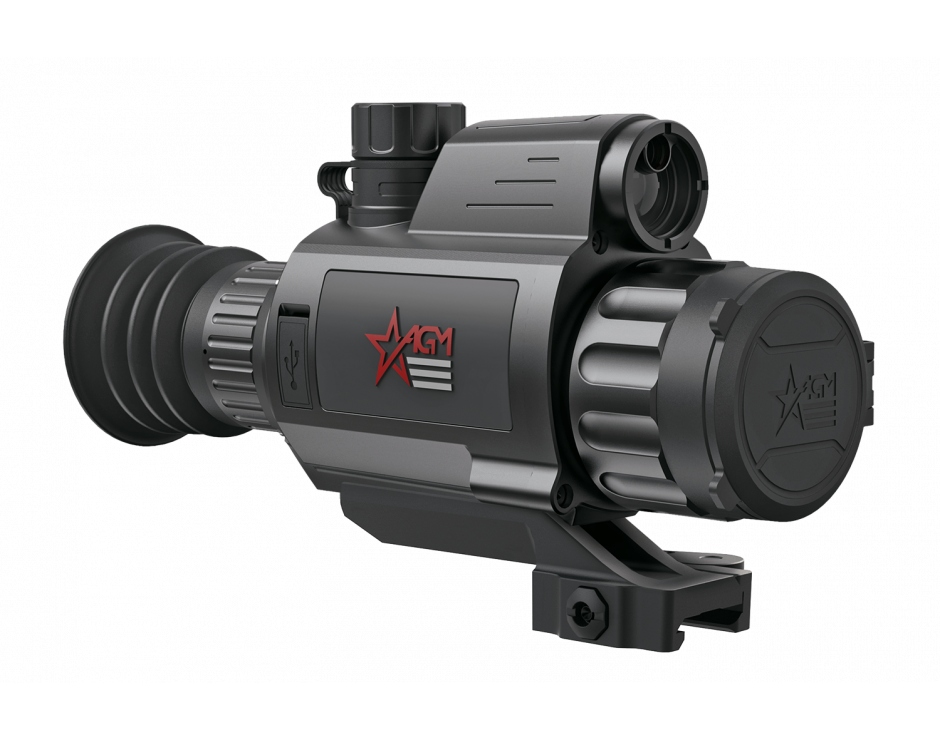

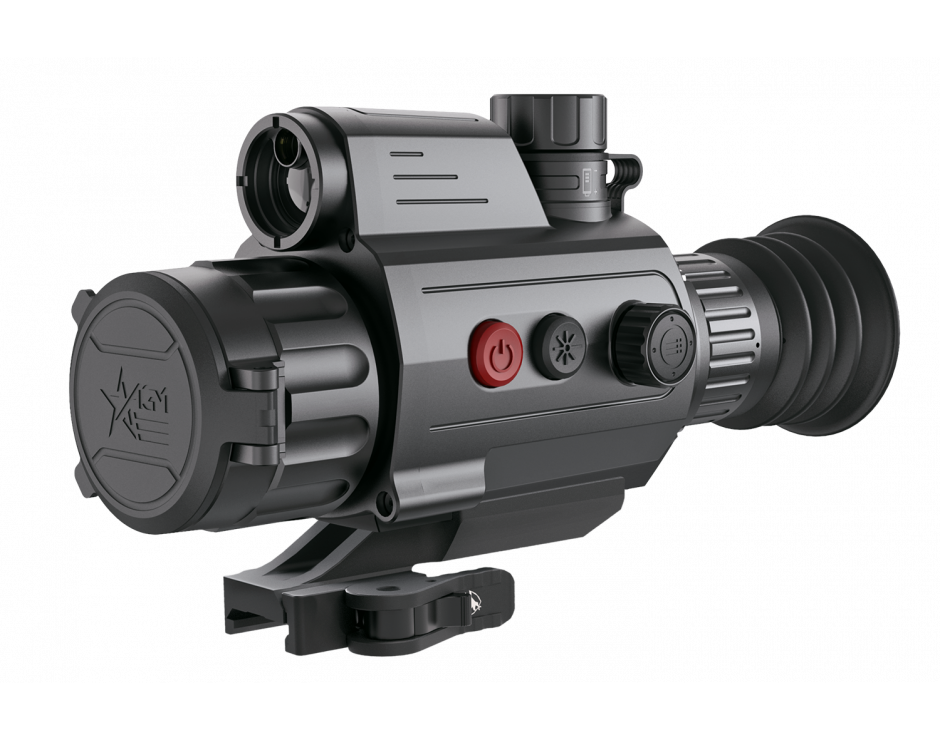

AGM VARMINT LRF TS35-640

Name: AGM VARMINT LRF TS35-640
Brand: AGM
SKU: 3142555305RA31
Price: 5244.0000 USD
Availability: InStock

Thermal imaging

PART #3142555305RA31

0 reviews | Write a review

Description And features

The AGM Varmint LRF is a compact thermal imaging scope developed for 24-hour operation under any weather and environmental conditions. Available in multiple configurations: 384x288(50 Hz) thermal detector or 640x512 (50 Hz) thermal detector, and 35mm or 50mm objective lens. These options allow the customer to choose the perfect unit for their needs. The 35mm lens is designed for medium-range applications, while the 50mm lens will be better suited for long-range engagements. Equipped with a highly sensitive, 12μm thermal detector and 1024×768 OLED monitor, the AGM Varmint LRF provides a clear image under harsh environment conditions including darkness, fog, smoke, dust, rain, snow, brush, camouflage, etc. The device can be used as a thermal riflescope or handheld monocular, and can be applied to scenarios such as patrolling, hunting, static observation, and more. The built-in laser range finder of the AGM Varmint LRF is designed to determine the exact distance between the observer and the target. Measurement results are displayed on the scopes monitor. One 18650 rechargeable battery gives the device up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB to USB-C connector for a significant increase of operating time. The device is equipped with fast EMMC storage for on board video recording and image capturing. An internal Wi-Fi module for live video streaming and video/image recording via application are also included.

Warning: California's Proposition 65

12μm high sensitivity thermal detector
Fast 50Hz imaging
1x, 2x, 4x, 8x Digital zoom
Adjustable color palettes
Built-in laser rangefinder
High resolution OLED display
Various reticle types and colors
On-board video recording and snapshot
Built-in EMMC storage (16 GB)
Wi-Fi data transmission
Standby mode
Up to 4.5 hours continuous runtime
External power supply compatibility
Waterproof & shockproof
Limited 3-year warranty

Characteristics

Detector type: 12 μm VOx Uncooled Focal Plane Arrays

Refresh rate: 50Hz

Resolution: 640x512

FOV: 12.52° × 10.03°

Downloads

Data Sheet

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$5,244.00

Compare

Quick Order

Add to cart

Specifications

Palettes

Black Hot, White Hot, Red Hot, Fusion

Reticle

5 types, 4 colors, on/off

Drop Test Height

1.5 m (4.9 ft)

Boresight Adjustment

Digital Controlled

Boresight Increment

0.22 mil / 0.73 MOA

Scene Mode

Yes

Picture In Picture Mode (PIP)

Yes

Hotspot

Yes

Observation Distance

1,750 m

Detector type

12 μm VOx Uncooled Focal Plane Arrays

Response Waveband

8 μm to 14 μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

Sensor 50Hz / OLED 50Hz

Aperture

F1.0

Resolution

640x512

Laser Rangefinder

Up to 600 m, ±2 m accuracy

Laser Wavelength

905 nm

Optical magnification

2x – 16x

Lens (focal length)

35 mm

Field of view (H × X)

12.52° × 10.03°

Digital zoom

1x, 2x, 4x, 8x

Monitor

1024x768, 0.39 inch, OLED

Eye relief

45 mm

Storage

Built-in 16 GB EMMC

Record Video

On-board video recording

Capture Snapshot

Yes

Battery Type

One 18650 (3.7V) Lithium Rechargeable Batteries

CVBS Output

Yes (via USB)

Battery Operating Time

Up to 4.5 hours

Battery Capacity Display

Yes

External power supply

5 VDC/2 A, USB Type-C

Operating Temperature Range

-20°C to 55°C (-4°F to 131°F)

Weight

652 g (1.44 lb)

Overall Dimensions

200 x 66 x 109 mm (7.8 × 2.6 × 4.3 in)

Protection Level

IP67

Firmware update

FIRMWARE UPDATE INSTRUCTION

Please read the instructions below before updating the firmware.

Check current firmware version of your device, for this go to your device’s main menu to option “Info” or “Version” and check what number you have. Compare the number with the latest version of the firmware on the AGM website.

Download the firmware update package to your PC and unzip it.

NOTE: Do not open the DAV or BIN file on your computer as it may corrupt the file.

Connect the thermal device to your PC with USB cable.
Turn on the thermal device.
Disable the Wi-Fi Hotspot function in the device menu if WiFi is enabled.
Open the detected disk (USB drive) in file manager program. Copy the unzipped .dav file and paste it to the root directory of the device.
Turn off the device.
Turn on the device. After a while, the firmware update process will start automatically. During the update, the screen will display the inscription "Upgrading ...". The update process will be completed when the inscription "Upgrading ..." goes out. Repeat steps 4-6 for each updating file.
Turn off the device and disconnect it from your PC.

WARNING:
If your device does not have a built-in rechargeable battery and is powered by replaceable Lithium batteries, remove the batteries from the battery compartment before connecting the device to your PC, or it may cause computer damage.

If you removed the batteries, please make sure the device is connected to the computer during the update process. Otherwise, the device will shut off and may cause unnecessary upgrade failure, firmware damage, etc.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.
