AGM VICTRIX TC50-384

Name: AGM VICTRIX TC50-384
Brand: AGM
SKU: 3083456006VI51
Price: 2830.0000 USD
Availability: InStock
Rating: 4 (2 reviews)

Thermal Clip-On Systems

PART #3083456006VI51

2 reviews | Write a review

Description And features

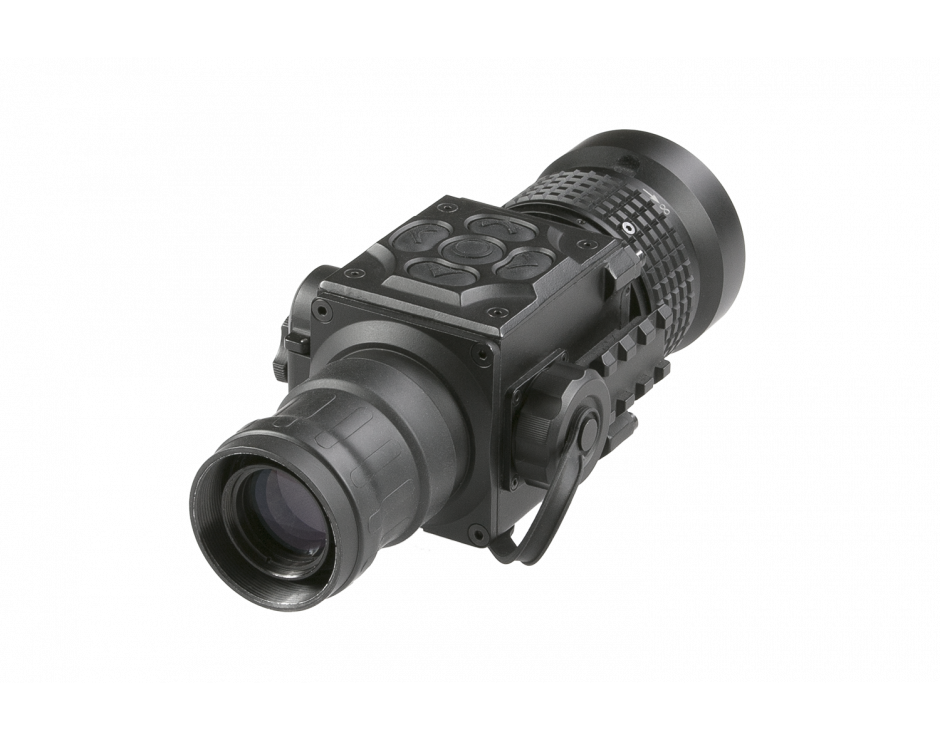

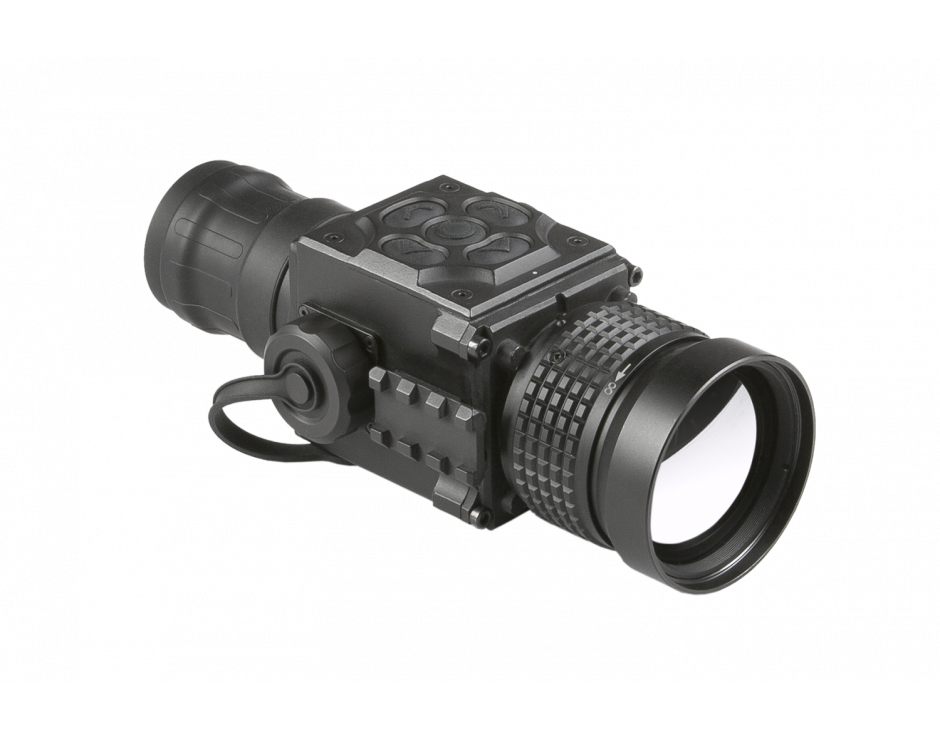

The AGM Victrix is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special skills. The Victrix can be easily attached on up to 8x magnification scopes for medium range use. Powered with two CR123 batteries the unit provides up to 5 hours of continuous work. An optional external battery pack with highcapacity is capable of increasing the total operation time to up to 44 hours. The Victrix can be also connected to an optional video recorder for shooting real time video or external Wi-Fi module for conjunction with smartphones.

Warning: California's Proposition 65

Quick conversion of daytime optics into thermal imaging scope

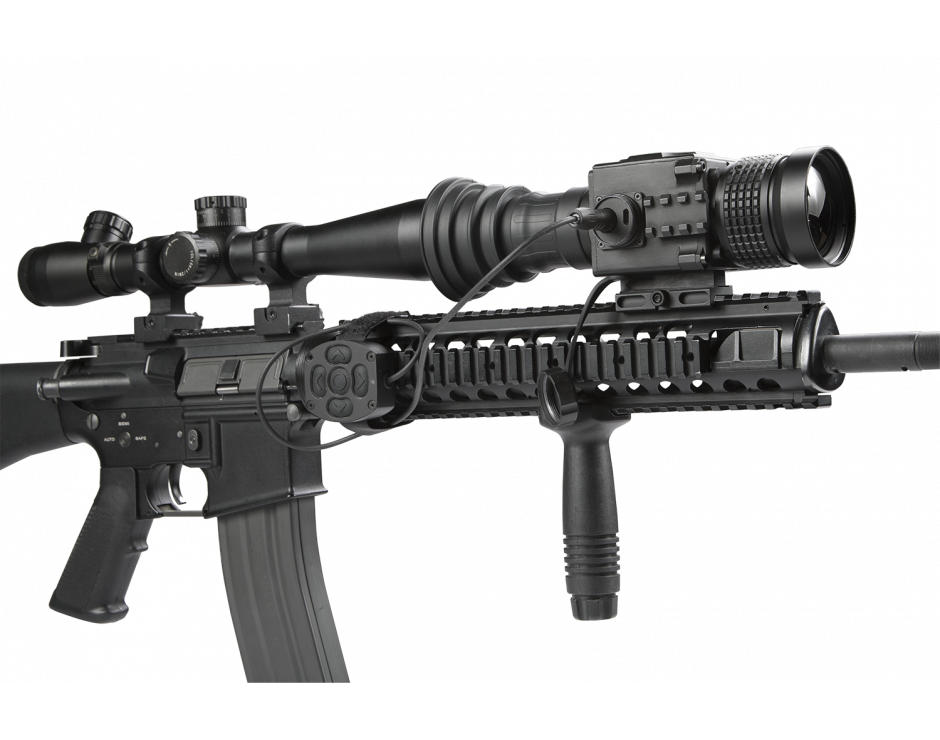

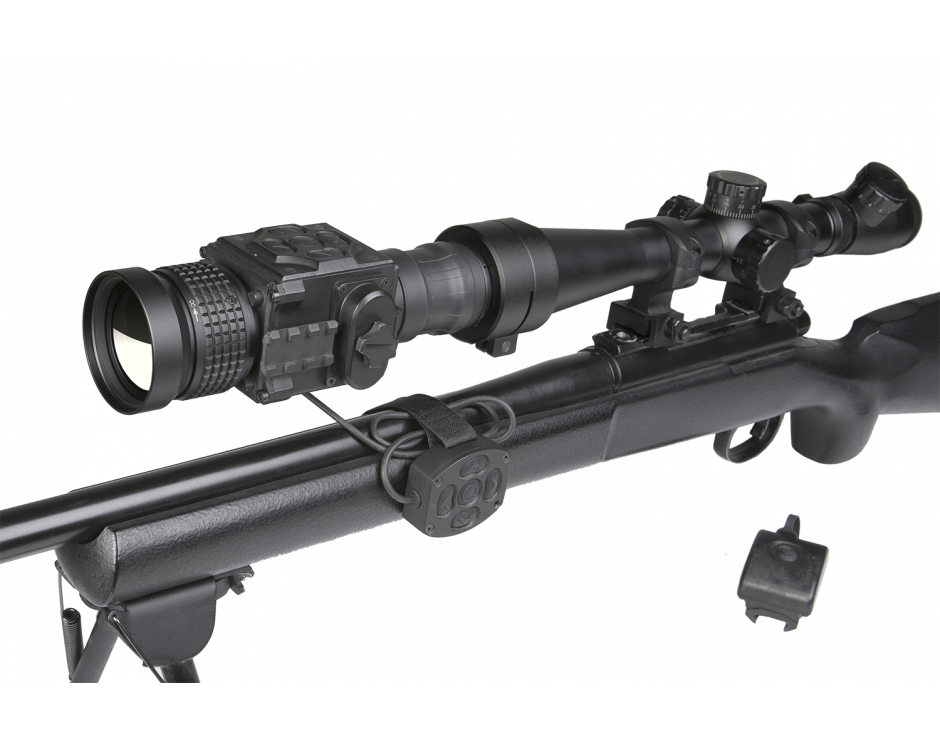

Mounts in front of any daytime scope, no re-zeroing is required
Electronic accuracy correction
Lightweight and compact design
Superior clarity, versatility and reliability
Waterproof & shockproof
Easy to operate control panel
High resolution display
Picture in Picture (PIP )mode with 2x digital zoom
Automatic or manual (silent) calibration
Stadiametric rangefinder
Powered by two standard CR123A batteries
External power supply via micro-USB
Optional external Wi-Fi module and video recorder
Integral rails on unit for optional accessories
Limited 3-Year Warranty

Characteristics

Detector type: 17μm Uncooled Microbolometer

Refresh rate: 50 Hz

Resolution: 384x288

FOV: 7.5° x 5.6°

Downloads

Data Sheet

User Manual

Export Restrictions:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$3,775.00

$2,830.00

Compare

Quick Order

Add to cart

Specifications

Detector type

17μm Uncooled Microbolometer

Refresh rate

50 Hz

Resolution

384x288

Lens system

50 mm; F/1.0

Optical magnification

1×

Field of view (H × X)

7.5° x 5.6°

Digital zoom

1×, 2×, 4×, PIP

Focusing range

5 m to infinity

Display

HD Display 1024x768

Video/Photo Format

AVI / JPG

Temperature imaging palettes

11 Image palettes

Interfacing

S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)

Battery Type

Two CR123A 3V Lithium Batteries

Battery Life (Operating)

Up to 5 hr

Power supply

5V USB / 3.6~7.2 V

Operating Temperature Range

-40°C to +70°C (-40°F to +158°F)

Degree of Protection

IP67

Weight

0.68 kg (1.5 lbs)

Overall Dimensions

190 x 84 x 64 mm (7.5 x 3.3 x 2.5 in)

Package Includes

Thermal Imaging Clip-On, Lens Cloth, Soft Carrying Case, User Manual

0%
100%
0%
0%
0%

Reviews Over AGM VICTRIX TC50-384

Average Rating:

Total Reviews (2)
click here write review to add review for this product.

Accuracy :
Performance :
Appearance :
Quality :
Value :

Author: Luke

Review Title: Quick and easy to deal with

Review Add on: 09/11/2020
Average Rating:

I bought it and installed it on the helmet mount. It is very cozy - I have empty hands and I can see everything perfectly. I suppose it is an army development, because it is very clearly thought out.
