AGM ANACONDA-MICRO TC50-384

Thermal Clip-On Systems

PART #3093456006AM51

0 reviews | Write a review

prod-img

Description And features

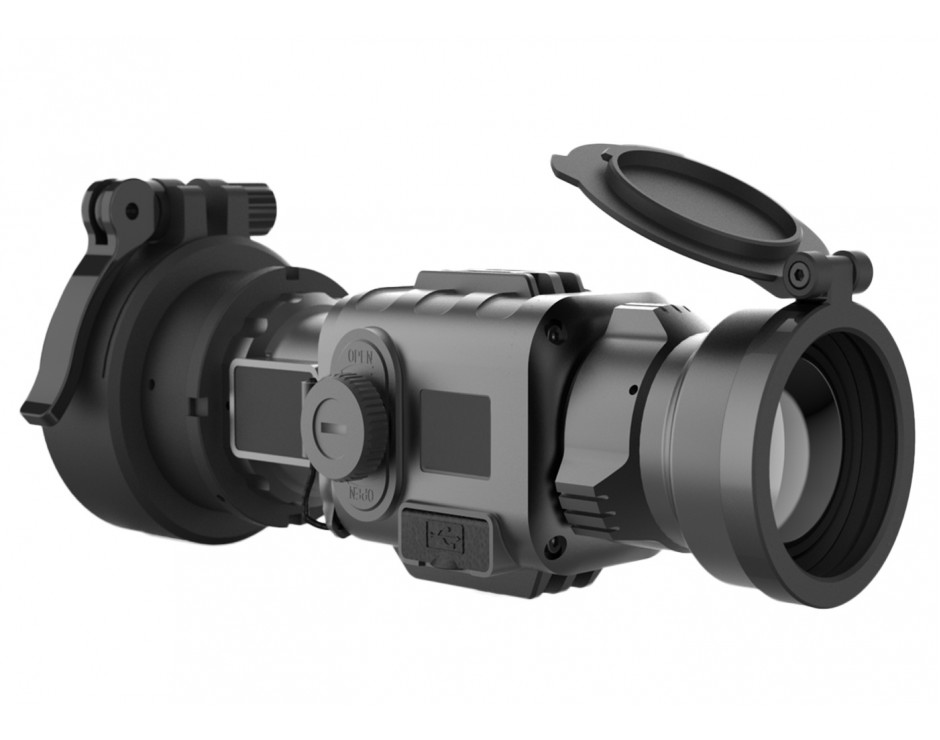

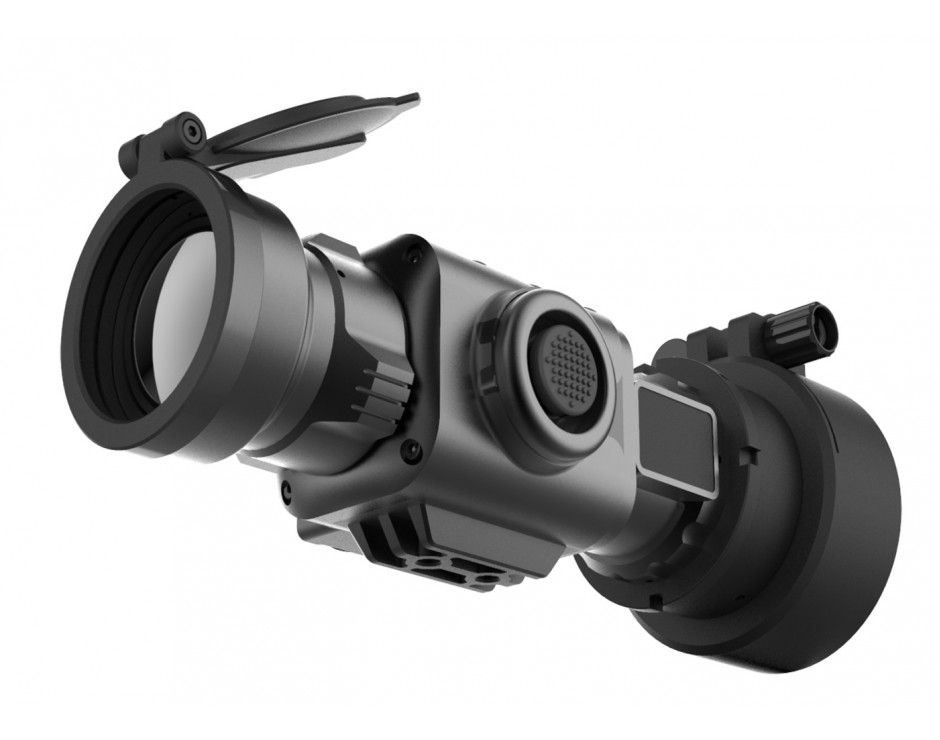

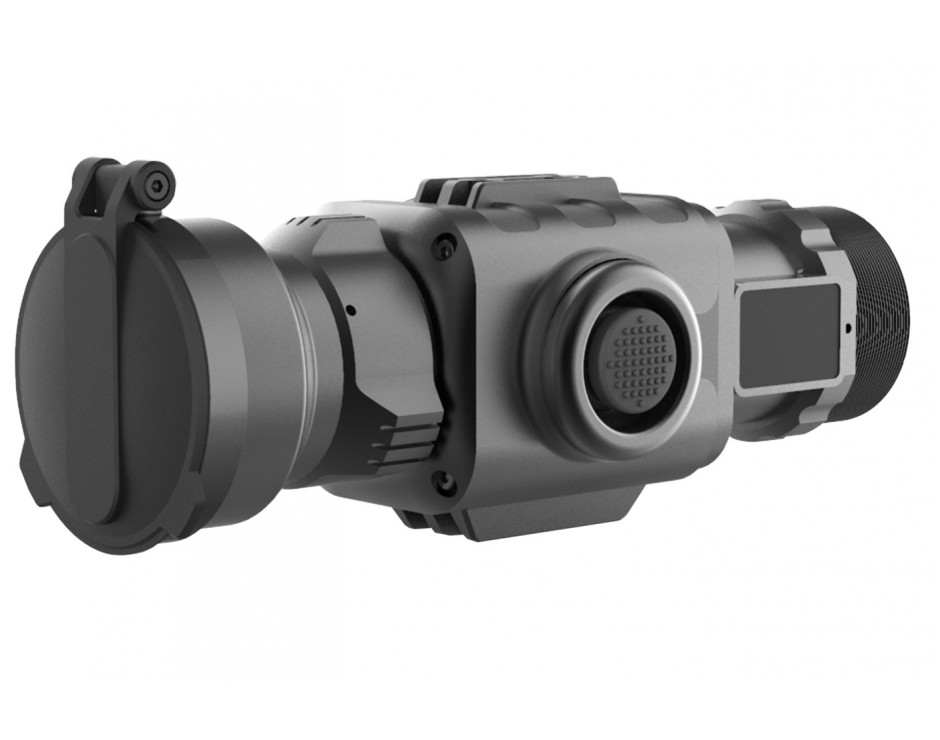

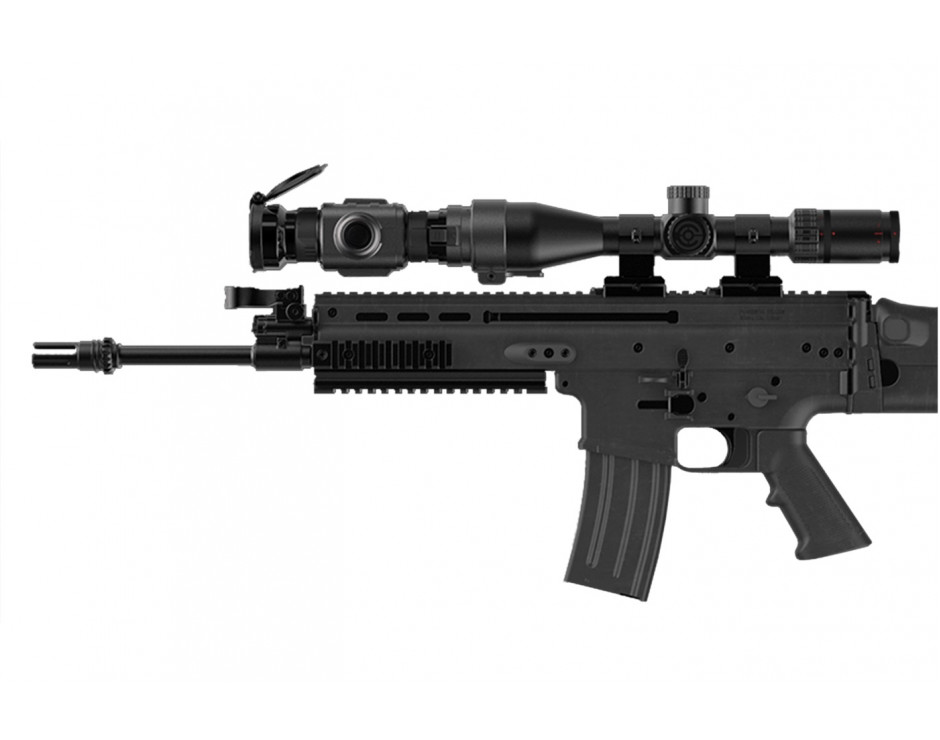

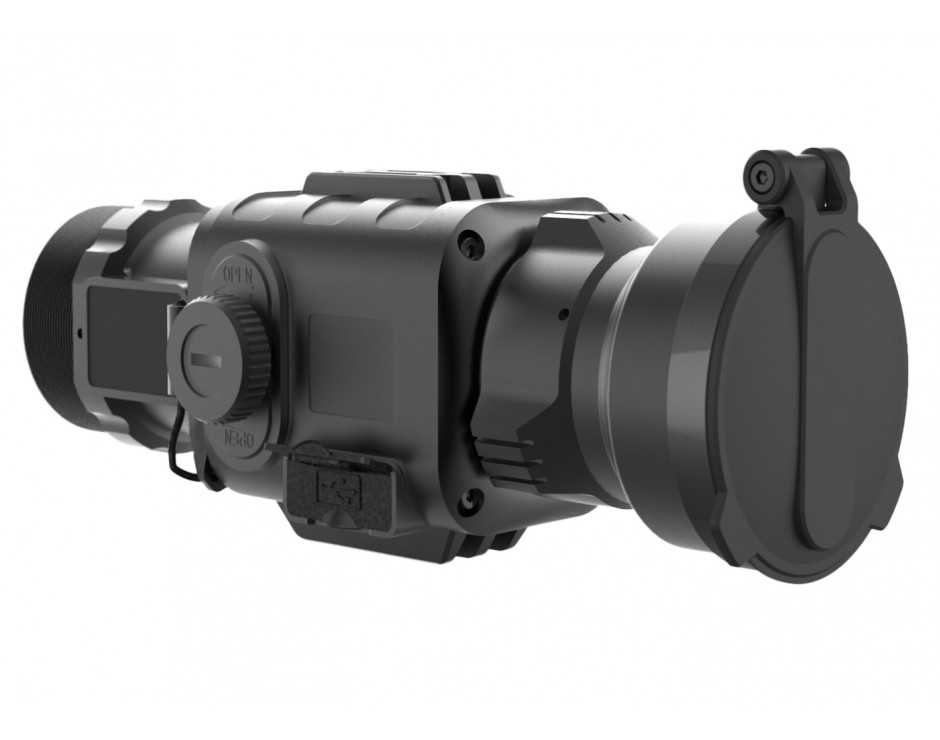

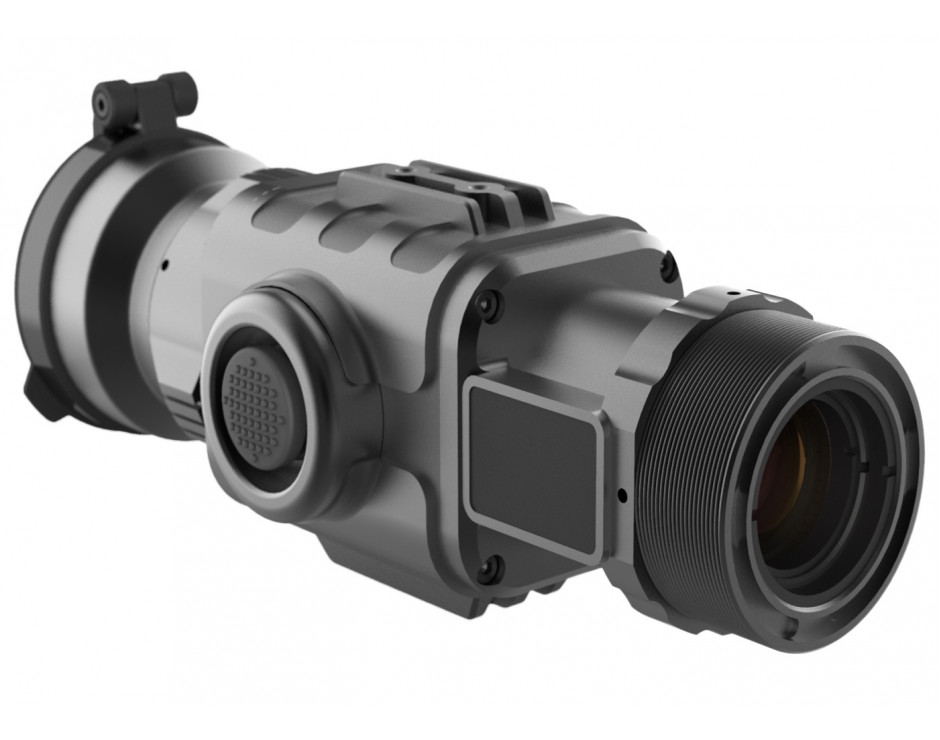

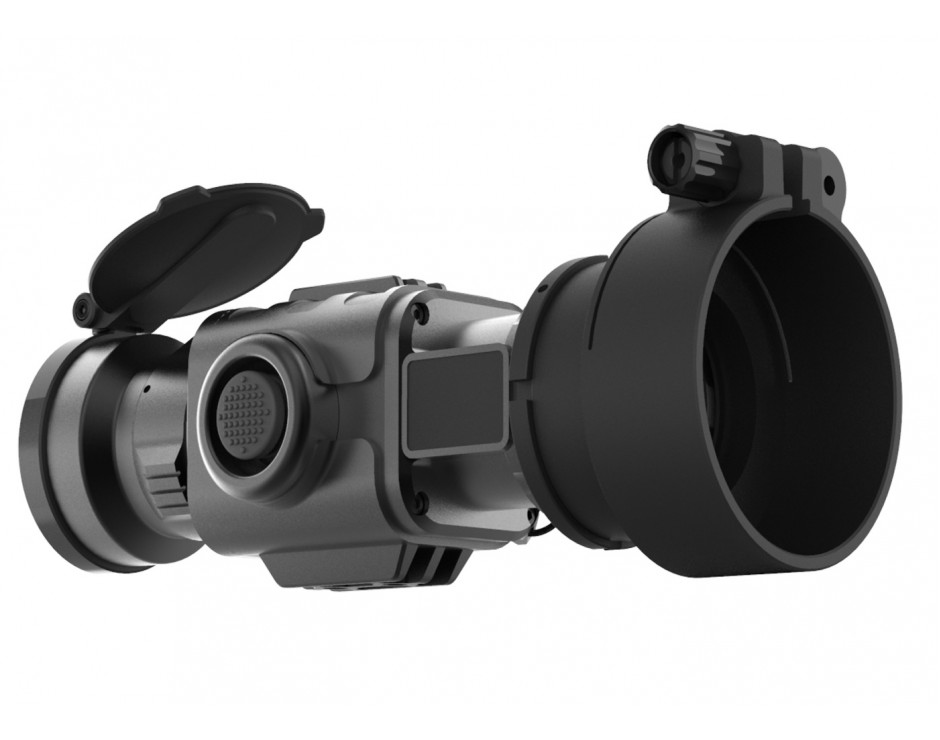

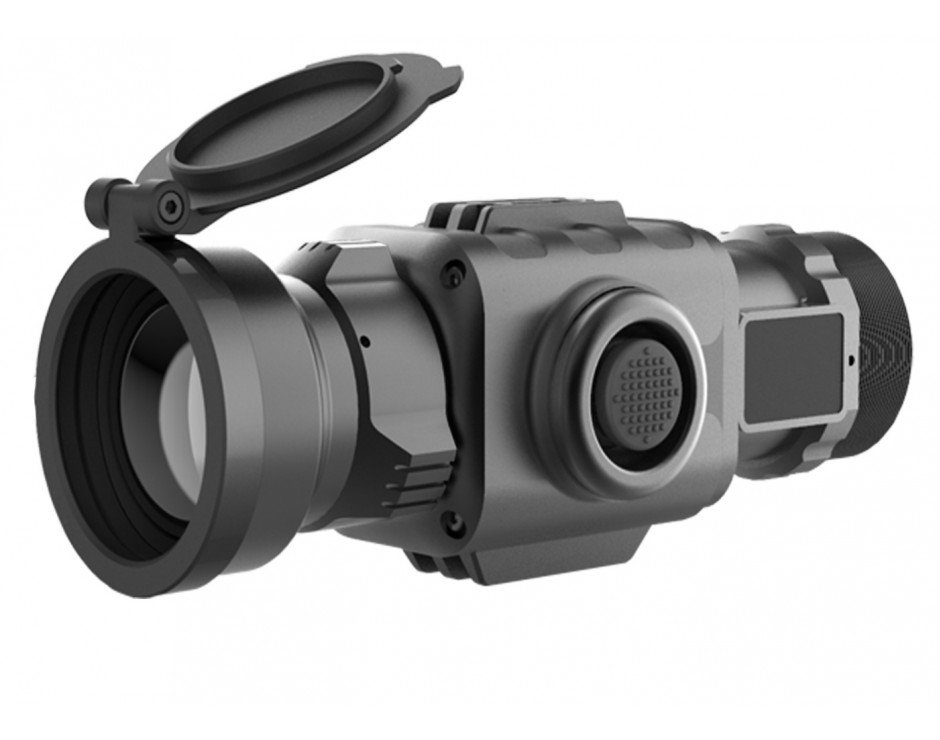

The AGM Anaconda-Micro TC50 is a compact thermal imaging clip-on system that allows quick transformation of the day optics into thermal imaging device without any special tools or equipment. The Anaconda-Micro can easily be attached in front of rifle scopes with magnification up to 8x for medium range use. Powered with two CR123 batteries the Anaconda-Micro gives up to 5 hours of continuous operation. An optional high capacity external battery pack is capable of increasing the total operation time to up to 44 hours. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

Read the article

AGM Python-Micro and Anaconda-Micro. WiFi and onboard recording functions Learn More


Warning: California's Proposition 65

  • Quick conversion of daytime optics into thermal imaging scope
  • Mounts in front of any daytime scope, no re-zeroing is required
  • Electronic accuracy correction
  • Lightweight and compact design
  • Easy to operate control panel
  • Automatic or manual (silent) calibration
  • High resolution OLED display
  • Wi-Fi data transmission
  • Video/images recording via APP
  • Waterproof, shockproof
  • Powered by two standard CR123A batteries
  • Video output for external monitor or recorder
  • External power supply capability
  • Limited 3-year warranty
Characteristics

Refresh rate: 50 Hz

Resolution: 384x288

FOV: 7.4° x 5.6°

Package Includes
  • Two Lithium CR123A batteries
Downloads
Data Sheet
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$4,719.00

Compare

Quick Order

Add to cart

Specifications

Storage Temperature Range
-40°C to +70°C (-40°F to +158°F)
Close-up range
5 m
Video / photo format
AVI / JPG
On-board memory
128MB (32 GB optional)
Degree of protection
IP67
Shock and vibration
1200 g/ms
Detector type
17μm, Uncooled, 50Hz
Resolution
384x288
Lens system
50 mm; F/1.1
Optical magnification
1x
Field of view (H × X)
7.4° x 5.6°
Digital zoom
2x, 4x
Eye relief
60 mm
Display
OLED (1024x768)
Record Video
Support video recording via APP
Capture Snapshot
Support snapshot capturing via APP
Battery Type
Two CR123
Wi-Fi
Yes
Battery Life (Operating)
Up to 5 hr
External power supply
5V USB
Power supply
3.6~7.2V
Operating Temperature Range
-25°C to +50°C (-4°F to +122°F)
Weight
0.43 kg (0.94 lbs)
Overall Dimensions
162 x 65 x 67 mm (6.3 × 2.8 × 2.6 in)
