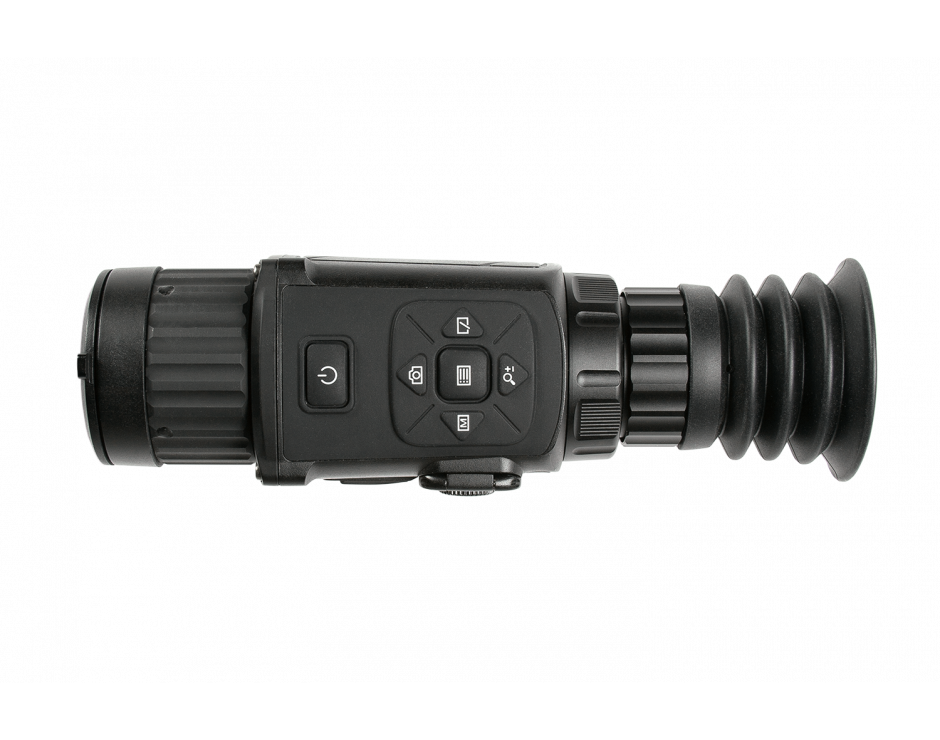

AGM RATTLER TS25-384

Name: AGM RATTLER TS25-384
Brand: AGM
SKU: 3092455004TH21
Price: 2094.0000 USD
Availability: InStock

Thermal imaging

PART #3092455004TH21

0 reviews | Write a review

Description And features

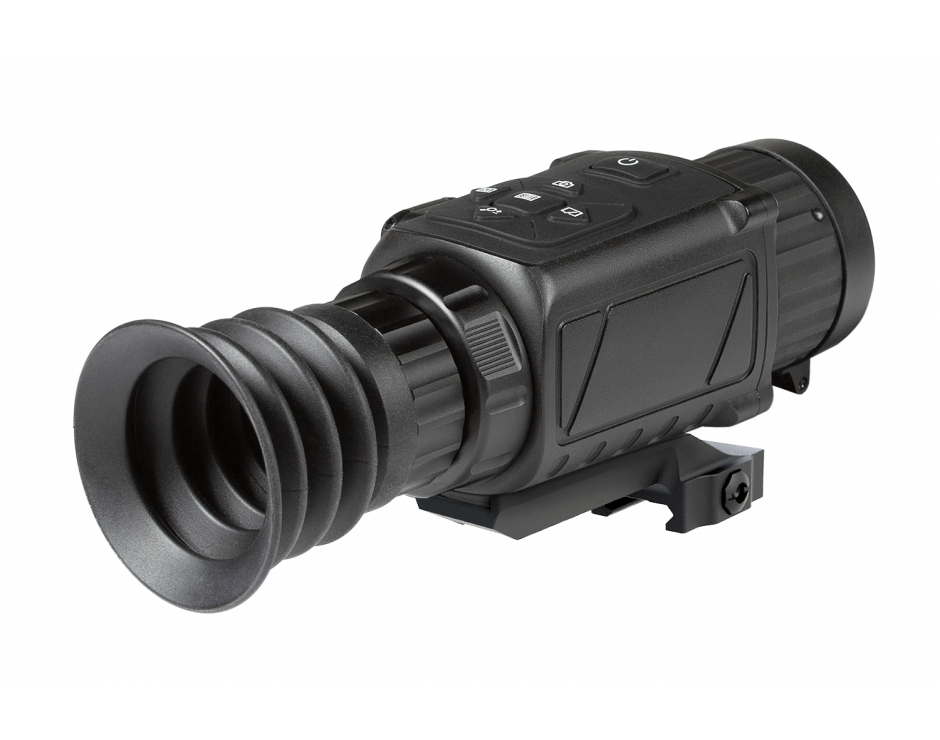

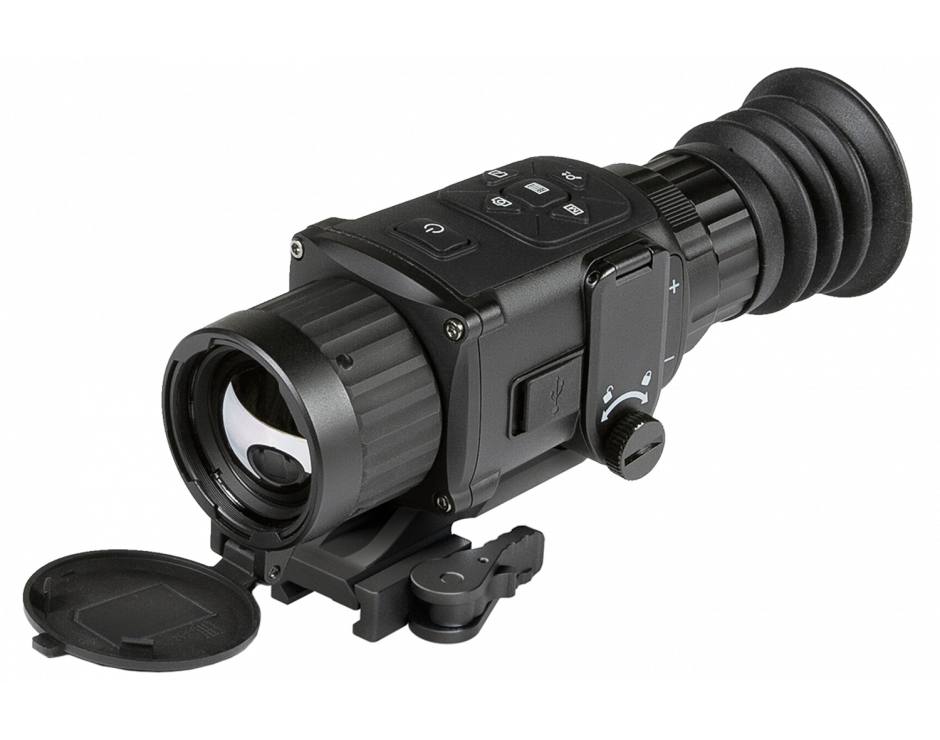

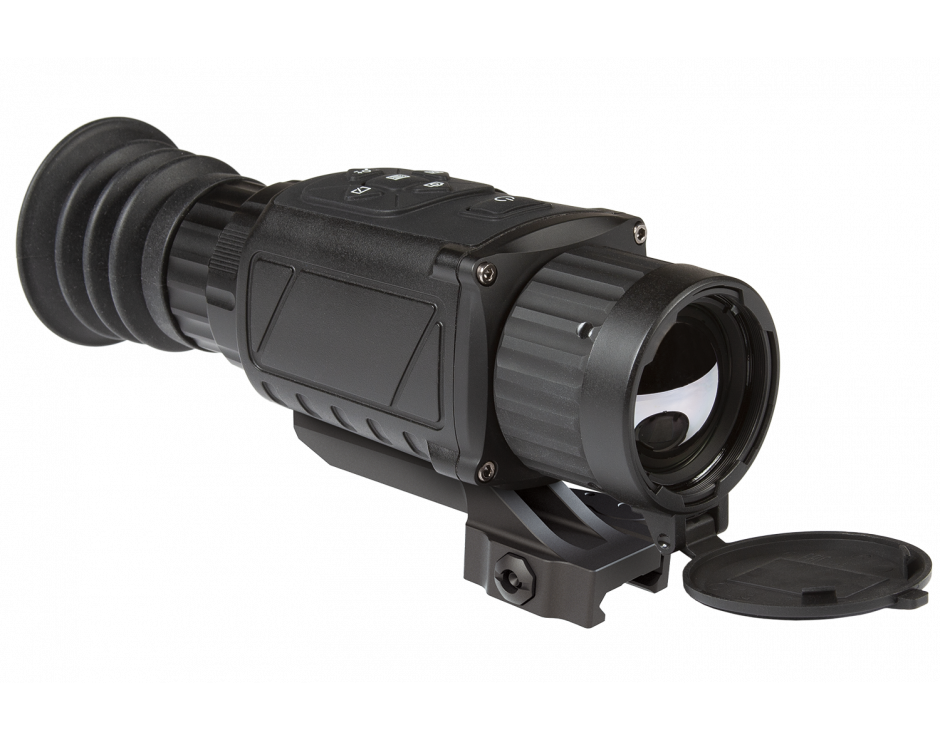

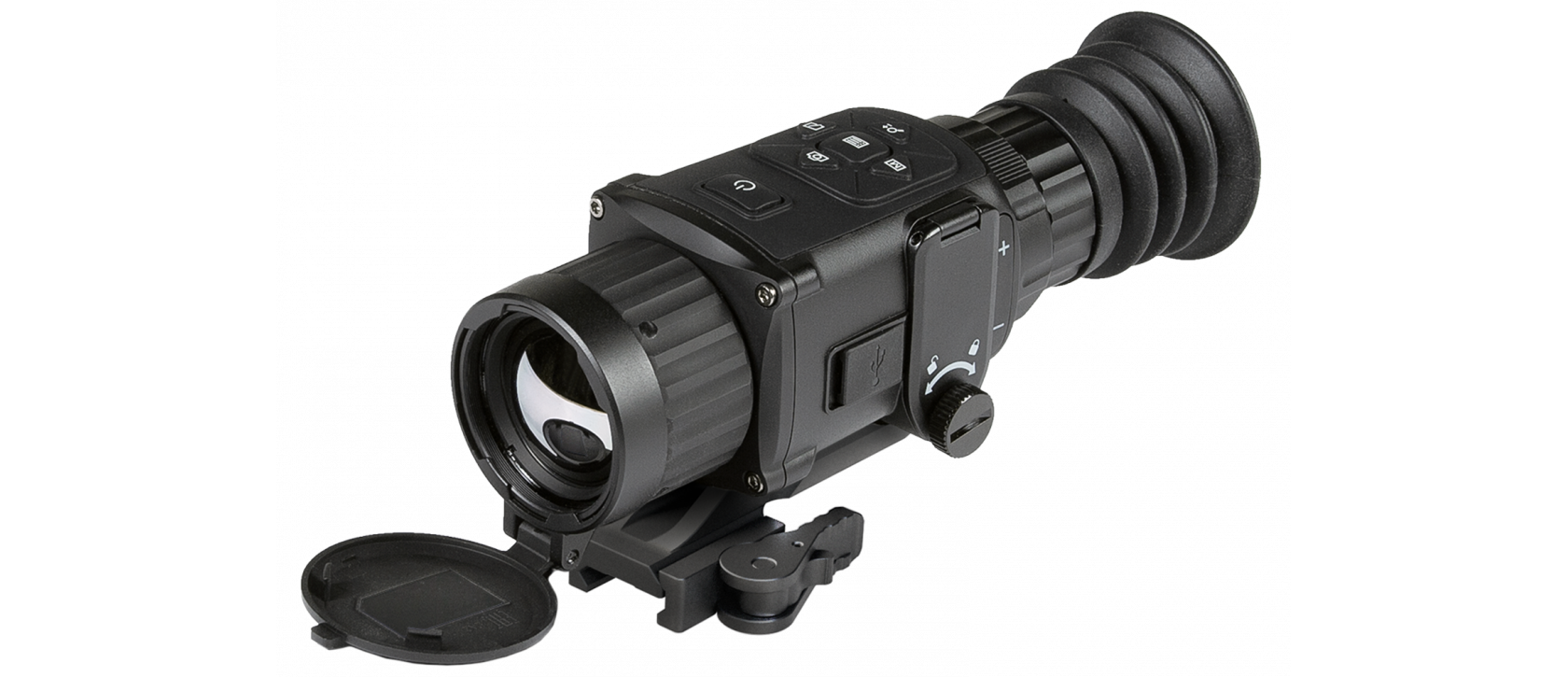

The AGM Rattler TS25-384 and Rattler TS35-384 are the compact thermal imaging scopes developed for 24 hours operation under any weather and environmental conditions. Two objective lens options allow the customer to choose perfect unit for your needs where 25 mm lens designed for short range shooting, while the 35 mm lens model will be great for medium range missions.

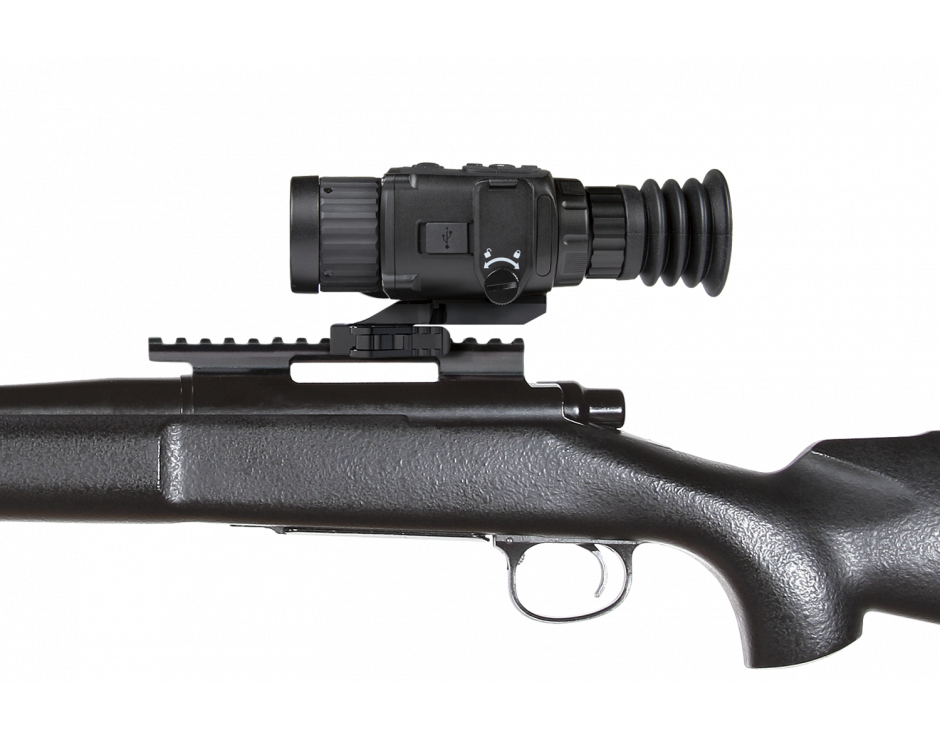

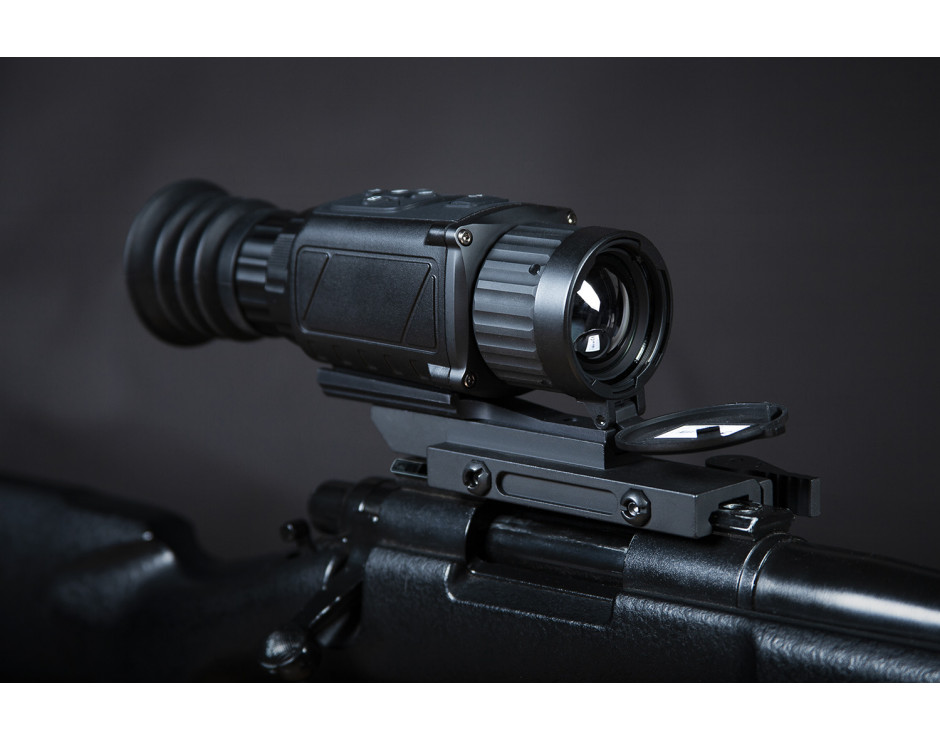

Thermal image riflescope has 384×288 thermal detector and 1024×768 OLED monitor, which provides clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The device is used as a thermal rifle scope or handheld monocular. The scope is mainly applied to scenarios such as patrolling, and hunting, etc.
Powered with two CR123 batteries the AGM Rattler TS-384 gives up to 4.5 hours of continuous operation time. An external 5V power bank (battery pack) can be easily connected via a USB connector for a significant increase of operating time. Onboard Wi-Fi module for live video streaming and video/images recording via application are also available.

Warning: California's Proposition 65

384 × 288 thermal resolution, high sensitivity detector
Image processing technology: Adaptive AGC, DDE, 3D DNR
1024 × 768 resolution 0.39-inch OLED display
8x digital zoom
Video recording and snapshot, built-in EMMC (16 GB)
Supports distance measurement
Adjustable color palettes
Wi-Fi data transmission
Waterproof, shockproof
Up to 4.5 hours continuous working
External power supply capability
Limited 3-year warranty

Characteristics

Detector type: 17μm, Uncooled, 50Hz

Refresh rate: Sensor 50 Hz / OLED 50 Hz

Resolution: 384x288

FOV: 14.9° x 11.2°

Downloads

Data Sheet

User Manual

$2,094.00

Compare

Quick Order

Add to cart

Specifications

Shock and vibration

750 g/ms

Detector type

17μm, Uncooled, 50Hz

Standby Mode

Yes

Resolution

384x288

Detection Range

Max. 882 m

Snapshot

Yes

Lens system

25 mm; F/1.0

Optical magnification

1.5x

Field of view (H × X)

14.9° x 11.2°

Digital zoom

2x, 4x, 8x, PIP

Eye relief

45 mm

Imaging palettes

Jungle, Recognition

Display

0.39-inch, OLED, 1024 × 768

Storage

Built-in EMMC (16 GB)

Record Video

Yes

Battery Type

Two CR123A (3V) Lithium or two RCR123 (up to 4.2V) Rechargeable Batteries

Wi-Fi

Yes

Battery Life (Operating)

Up to 4.5 hr

External power supply

5V USB

Operating Temperature Range

-20°C to +55°C (-4°F to +131°F)

Degree of Protection

IP67

Weight

0.41 kg ( 0.91 lb)

Overall Dimensions

187.2 × 62.5 × 59.2 mm (7.37 × 2.46 × 2.33 in)

Firmware update

V5.4.26_210604

Release Notes:

The software changes were made only in the part concerning the clip-on device.

To begin the procedure for updating the firmware of your equipment, you must confirm that you are familiar with and agree to the "AGM GLOBAL VISION" Export Policy («AGM GLOBAL VISION» Export Policy). By continuing the process of updating your device, you are confirming that you received this device legally and in compliance with all applicable US export laws and that you are not on the Banned Persons List and/or are not affiliated with any of the Banned Persons as defined by the US Government.
If these conditions are met, please check the box on the left and follow the instructions for updating the hardware firmware.

Please check the latest firmware. Click the FW Version to download the firmware update package.

RATTLER TS-384 THERMAL RIFLESCOPES SERIES FIRMWARE

Firmware Versions:
- V5.5.21_211130
  - Support auto power off function.
  - Added PIP quick start button: Press MODE button.
  - Added black color for reticles.
  - Reticles display in PIP for T-Vision and recording files.
- V5.4.26_210827
  - Support auto power off function.
  - Added PIP quick start button: Press MODE button.
  - Added black color for reticles.
  - Reticles display in PIP for T-Vision and recording files.
- V5.4.26_210604
  - The software changes were made only in the part concerning the clip-on device.
  - Reticle firmware_0A52710102_Curs_EN
  - FPGA firmware_V1.0.1_210309
- V5.4.26_210508
  - The name of Boresighting menu is changed to “Reticle”.
  - Cursor names are changed from “Boresighting” to “Reticle”.
  - Fixed the reticle color saving.
  - Introduced new reticle patterns.
  - Only Reticle 1 supports trajectory function.
- V5.4.26_210415
  - The scope or clip-on device type is automatically detected to install the corresponding software version.
  - New crosshair patterns in Boresighting menu.
  - Trajectory Correction function supports only Boresighting 1 cursor type.
  - The reticle display and crosshair color are retained after turning off the device.
  - Trajectory synchronization is maintained across various digital zoom.
- V5.4.26_210331

  - The image quality has been improved.
  - Reticles are updated.
- V5.4.26_201120
  - Repacked firmware. All the features keep the same.
- V5.4.26_201110

  - Basic version.
  - Trajectory Correction function supports all reticles.
