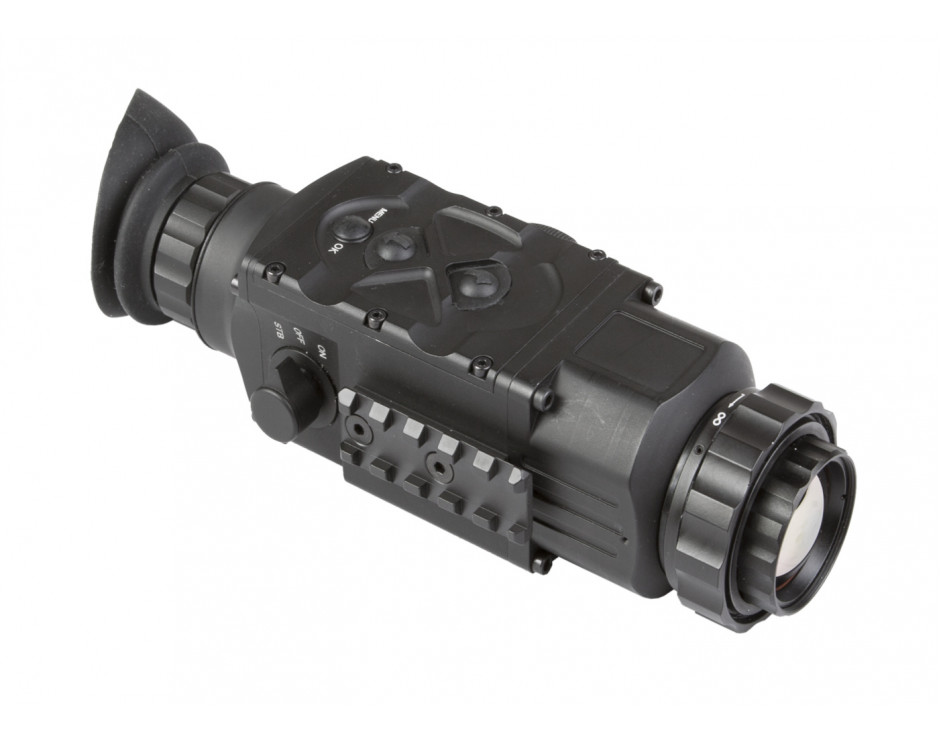

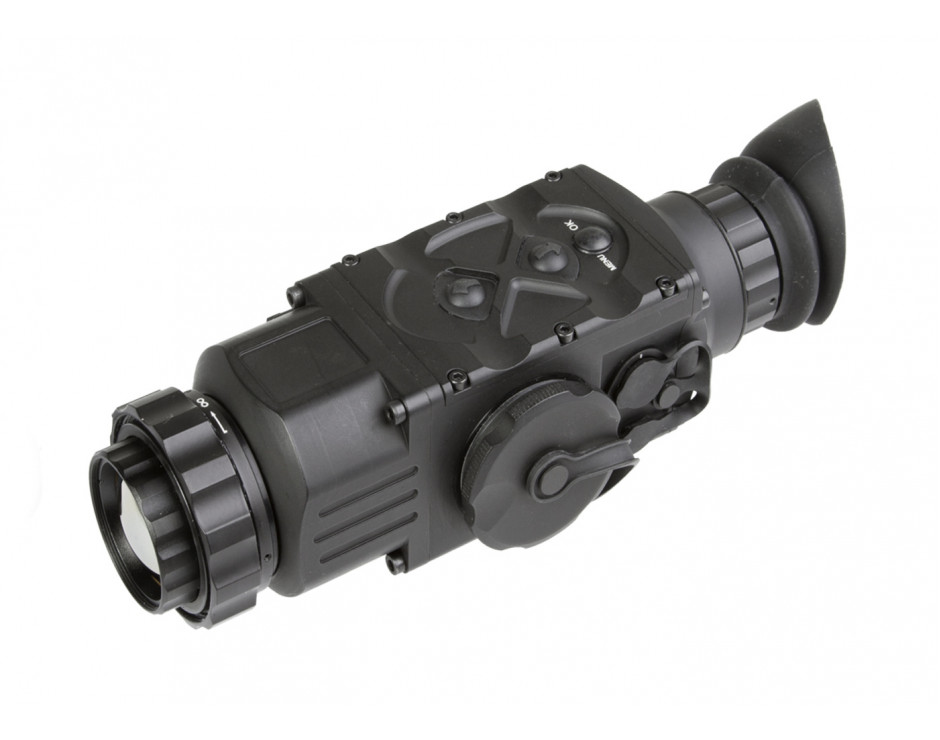

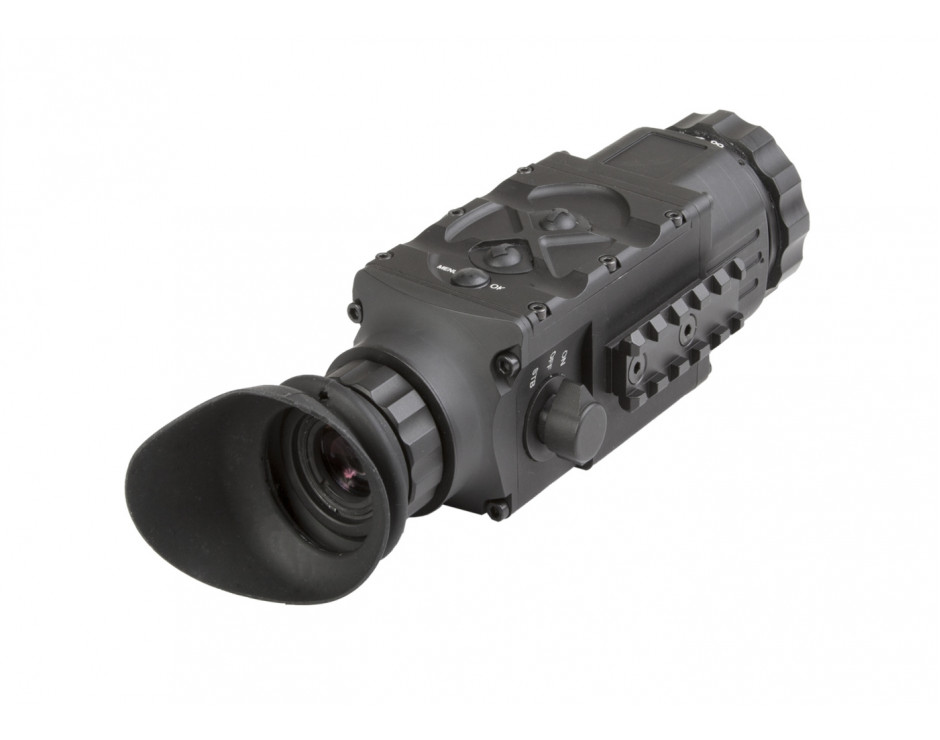

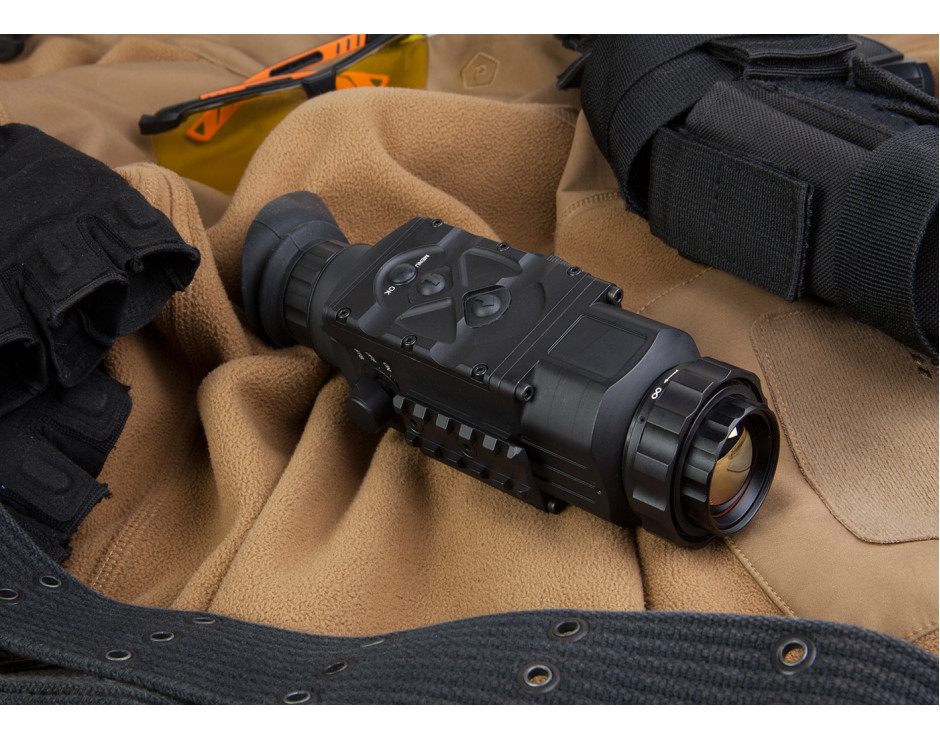

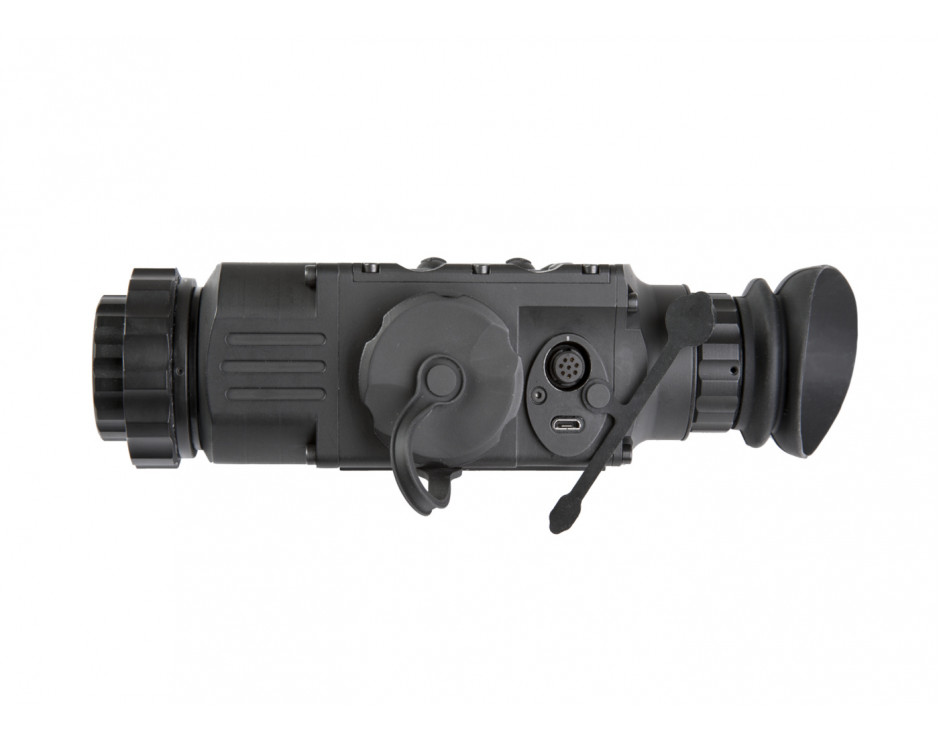

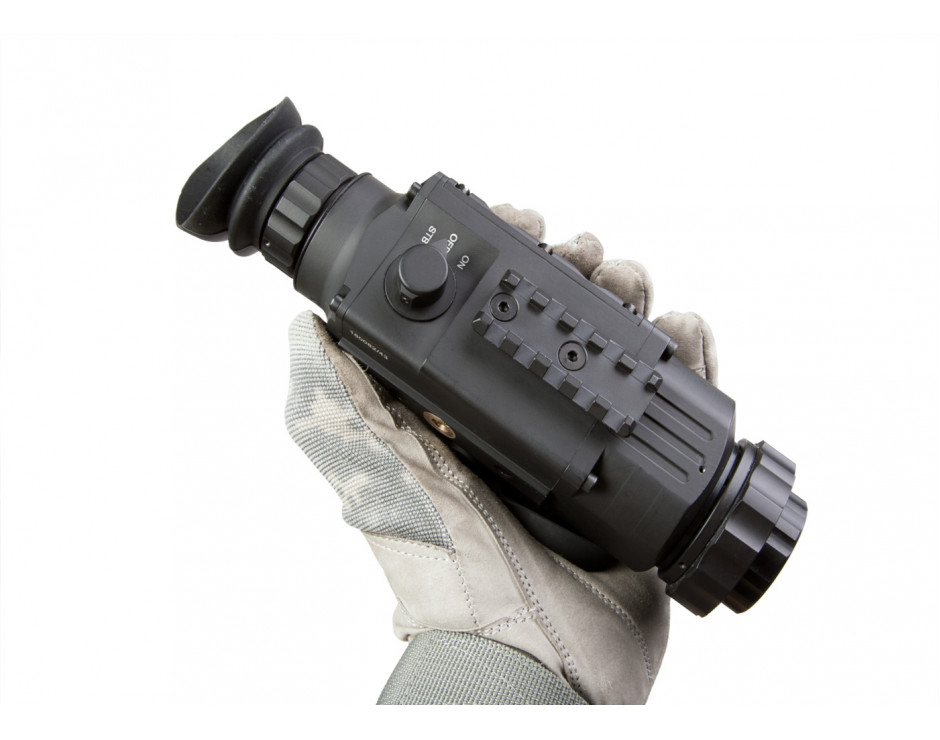

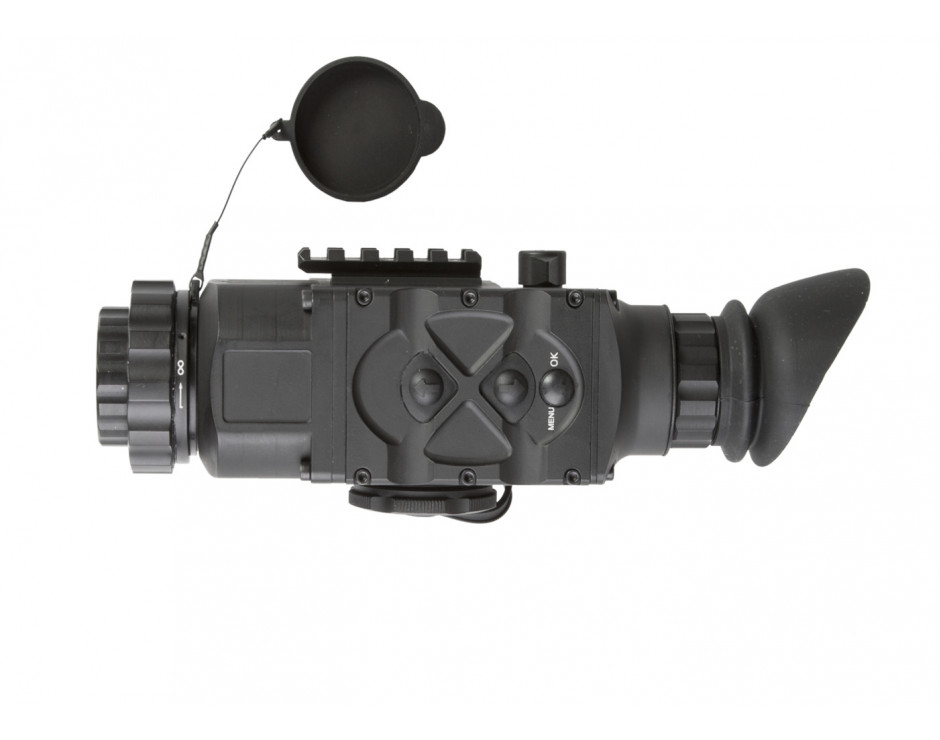

AGM ASP TM25-640

Thermal imaging

PART #3093551004AS21

0 reviews | Write a review

prod-img

Description And features

The AGM ASP represents the line of the most technologically advanced thermal imaging monoculars currently existing on the market. Based on FLIR Tau 2 VOx microbolometer cores and made of high-grade aircraft aluminum alloy the unit guarantees durability and outstanding performance even to the most sophisticated users. This uncooled, long-wave infrared, magnified thermal imaging camera by AGM is designed for fulfilling of both day and night missions irrespective of the environment and weather factors, while a wide variety of objective lenses (25 mm, 50 mm, and 75 mm) enables the operator to use the device as both a compact, pocket-sized thermal imaging monocular, or as a long-range observation tool. The ASP thermal imaging monocular can be easily connected to extended battery pack to increase operational time. Optional WiFi module for live video streaming and recording is also available.

Warning: California's Proposition 65

  • FLIR Tau 2 17μm pitch thermal sensor
  • Durable and lightweight design
  • Easy and intuitive operation
  • Manually adjustable eyepiece and objective lens
  • External WiFi module
  • Optional video recording
  • A wide variety of color palettes
  • Digital zoom: 1x, 2x, 4x, and 8x
  • Wireless remote control
  • Waterproof
  • Integral MIL-STD-1913 rails on unit for optional accessories
  • Powered by two standard CR123A batteries
  • External power supply via micro USB
  • Limited 3-Year Warranty
Characteristics

Detector type: FLIR Tau 2 17μm Uncooled Microbolometer

Refresh rate: 30 Hz

Resolution: 640x512

FOV: 24° × 20°

Package Includes
  • Two Lithium CR123A batteries
  • Lens Tissue
  • Operators Manual
  • Packing Box
  • Remote Control
  • Soft Carrying Case
Downloads
Data Sheet
User Manual
Export Restrictions:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.

$4,825.00

Compare

Quick Order

Add to cart

Specifications

Detector type
FLIR Tau 2 17μm Uncooled Microbolometer
Refresh rate
30 Hz
Resolution
640x512
Start up
3 seconds
Lens system
25 mm; F/1.0
Optical magnification
1×
Field of view (H × X)
24° × 20°
Digital zoom
1×, 2×,4 × and 8×
Diopter adjustment range
-5 to +5 dpt
Focusing range
2.5 m to infinity
Display
(800x600)
Video output
PAL (768x574 pixels)/ NTSC (640x480 pixels)
Temperature imaging palettes
White Hot, Black Hot, Fusion, Rainbow, Globow, Ironbow1, Ironbow2, Sepia, Color1, Color2, Ice-Fire, Rain, and OEM
Interfacing
S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder) Micro USB (External Battery Pack)
Battery Type
Two CR123A 3V Lithium Batteries or CR123 Type Rechargeable Batteries with Voltage from 3.0V to 3.7V (2)
Battery Life (Operating)
Up to 4 hr (optional up to 12 hrs)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Weight
0.58 kg (1.2 lbs)
Overall Dimensions
196×72×56mm (7.7×2.8×2.2 in)
Package Includes
Thermal imaging monocular, Lens Cloth, Soft Carrying Case, User Manual
